Diodes Incorporated | DMP2170U-7

Manufacturer Part #

DMP2170U-7

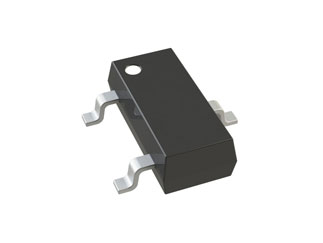

DMP2170 Series 20 V 3.1 A 90 mOhm 303 pF SMT P-Channel Mosfet - SOT-23-3

ECAD Model:
Mfr. Name: Diodes Incorporated
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Diodes Incorporated DMP2170U-7 - Technical Attributes
Attributes Table
Product Status: Active
Fet Type: P-Ch
No of Channels: 1
Drain-to-Source Voltage [Vdss]: 20V
Drain-Source On Resistance-Max: 90mΩ
Rated Power Dissipation: 780mW
Qg Gate Charge: 7.8nC
Gate-Source Voltage-Max [Vgss]: 12V
Drain Current: 3.1A
Turn-on Delay Time: 5.4ns
Turn-off Delay Time: 16.2ns
Rise Time: 18.3ns
Fall Time: 13.6ns
Operating Temp Range: -55°C to +150°C
Gate Source Threshold: 1.01V
Input Capacitance: 303pF
Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
24 Weeks
Minimum Order:
3000
Multiple Of:
3000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$206.10
USD
Quantity
Unit Price
3,000
$0.0687
9,000
$0.0671
15,000
$0.0663
60,000
$0.0643
90,000+
$0.063
