Manufacturer Part #
250R120-RCZR

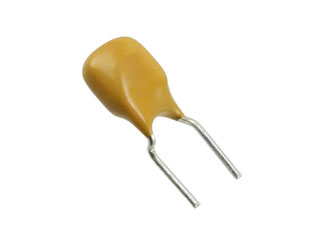

250V POLYFUSE® Lead-Free Radial Leaded Resettable PPTC for Telecom Protection
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1200 per Reel Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Littelfuse 250R120-RCZR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Material Supplier Change
02/19/2024 Details and Download
Littelfuse would like to notify you of a change related to the epoxy coating of the High Voltage Radial Leaded parts. Due to obsolescence of the current epoxy coating by oursupplier, Littelfuse has qualified alternative epoxy coating sources. The change to the coating will impact all products in the High Voltage Radial Leaded range. There will be no change to the form, fit function of the product.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=250R120-RCZR&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/250r120-rczr-littelfuse-4171431
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=250R120-RCZR&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/250r120-rczr-littelfuse-4171431
Littelfuse 250R120-RCZR - Technical Attributes
Attributes Table
| Voltage Rating: | 60V |
| Hold Current [Ih]: | 120mA |
| Trip Current: | 240mA |
| Resistance: | 14Ω |
| Current Rating: | 3A |
| Time to Trip: | 3s |
| Operating Temp Range: | -40°C to +85°C |
| No of Terminals: | 2 |
| Dimension: | T 11mm x L 6.5mm x W 4.6mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
1,200
$0.555
2,400
$0.545
4,800
$0.54
6,000+
$0.53
Product Variant Information section
Available Packaging
Package Qty:
1200 per Reel
Package Style:
RADIAL
Mounting Method:
Through Hole
