Manufacturer Part #
60R050XPR

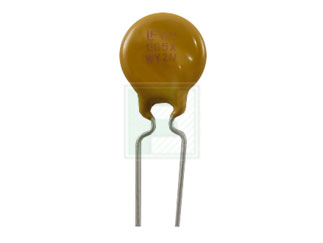

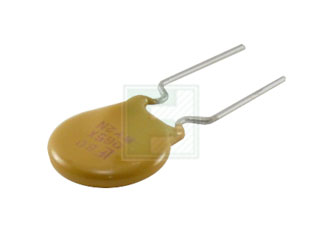

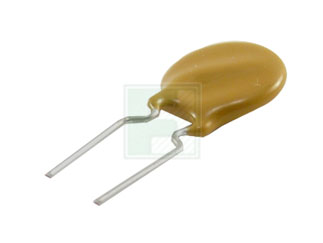

PTC 60V POLYFUSE AMMO RADIAL LEADS .500A
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Ammo Pack Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Littelfuse 60R050XPR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Change Notification for Littelfuse (Coating Material Change for Radial Lead PPTC)Littelfuse would like to notify you of a change related to the epoxy coating of the Radial Leaded PPTC products. Due to obsolescence of the current epoxy coating by our supplier, Littelfuse has qualified alternative epoxy coating sources. The change to the coating will impact all products in the PPTC Radial Leaded range.TimeframeThis change will be made starting Jan 1, 2024.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=60R050XPR&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/60r050xpr-littelfuse-3186640
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=60R050XPR&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/60r050xpr-littelfuse-3186640
Littelfuse 60R050XPR - Technical Attributes
| Voltage Rating: | 60V |
| Hold Current [Ih]: | 0.5A |
| Trip Current: | 1A |
| Resistance: | 1.17Ω |
| Current Rating: | 40A |
| Time to Trip: | 4s |
| Rated Power: | 0.77W |
| Operating Temp Range: | -40°C to +85°C |
| Terminal Pitch: | 5.08mm |
| No of Terminals: | 2 |
| Dimension: | T 3.1mm x D 7.9mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
2000 per Ammo Pack
Package Style:
RADIAL
Mounting Method:
Through Hole
