Manufacturer Part #
PESD2CANFD24L-TR

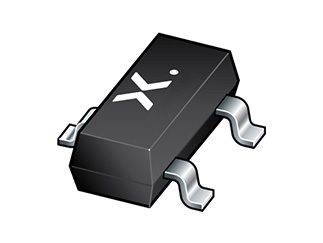

PESD2CANFD24L Series 24 V 4 A SMT Double ESD Protection Diode - SOT-23-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23 (SC-59,TO-236) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia PESD2CANFD24L-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PESD2CANFD24L-TR&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/pesd2canfd24l-tr-nexperia-1146248
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PESD2CANFD24L-TR&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--tvs-diodes/pesd2canfd24l-tr-nexperia-1146248
Nexperia PESD2CANFD24L-TR - Technical Attributes
Attributes Table
| Breakdown Voltage-Min: | 25.5V |
| Clamping Voltage-Max: | 41V |
| Directional: | Bi-Directional |
| Peak Output Current: | 4A |
| Reverse Leakage Current: | 1nA |
| Standoff Voltage: | 24V |
| Operating Temp Range: | -55°C to +175°C |
| Storage Temperature Range: | -65°C to +175°C |
| Capacitance: | 9pF |
| Breakdown Voltage-Max: | 35.5V |
| Package Style: | SOT-23 (SC-59,TO-236) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
N/A
Quantity
Unit Price
3,000
$0.138
6,000
$0.136
9,000
$0.135
15,000+
$0.132
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23 (SC-59,TO-236)
Mounting Method:
Surface Mount
