Manufacturer Part #
V10E275P

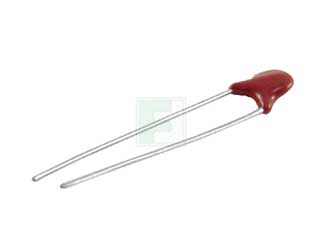

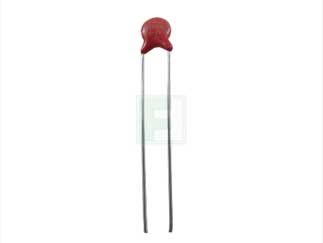

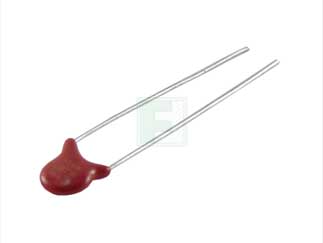

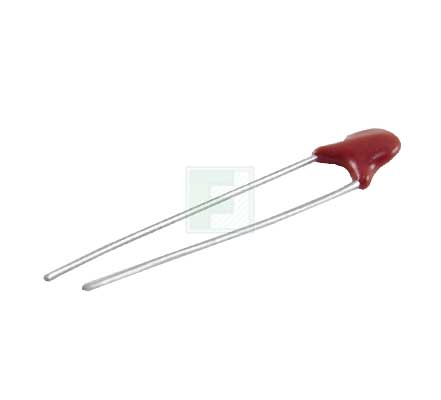

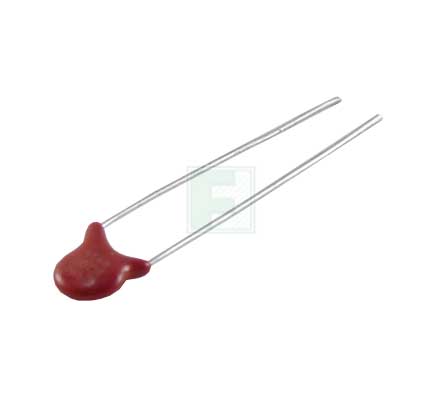

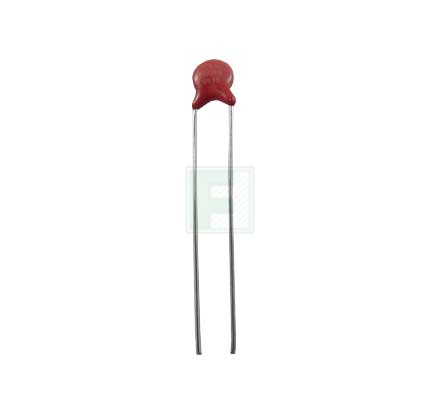

UltraMOV® Series 350 VDC 275V RMS 710 V Clamp 3500 A 200 pF Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Littelfuse V10E275P - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:Per LFPCN# 41497, UltraMOV? Varistor Series inner electrode was changed from Ag to Cu from April 2024. Due to current Cu electrode production capacity limitation, we will resume Ag electrode production for UltraMOV? Varistor Series from September 14th, 2024. During the change transition period, customers are expected to receive both Cu and Ag products until Cu products inventory in Littelfuse warehouse and distribution channels are depleted.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V10E275P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v10e275p-littelfuse-1940881
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V10E275P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v10e275p-littelfuse-1940881
Littelfuse V10E275P - Technical Attributes
| Capacitance: | 200pF |
| Clamping Voltage-Max: | 710V |
| Peak Output Current: | 3500A |
| Rated Voltage: | 350V |
| RMS Voltage-Max: | 275V |
| Varistor Voltage Range: | 387V to 473V |
| Current Rating: | 1A |
| Energy: | 55J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 10mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1000 per Box
Package Style:
RADIAL
Mounting Method:
Through Hole
