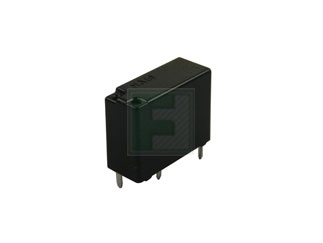

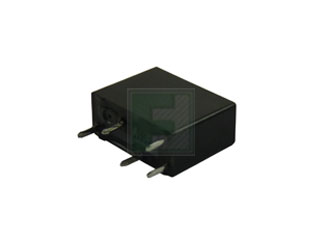

Panasonic Industry | ACT112

Manufacturer Part #

ACT112

ACT Series 10 A SPDT 12 VDC Super Miniature Slim Type Automotive Relay

ECAD Model:
Mfr. Name: Panasonic Industry
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Panasonic Industry ACT112 - Technical Attributes
Attributes Table
Contact Form: SPDT (1 Form C)
Contact Current-Max: 10A
Nominal Coil Voltage: 12V
Termination Style: PC Pin
Mounting Method: PCB Mount
Features & Applications

The ACT Series 10 A SPDT 12 VDC Super Miniature Slim Type Automotive Relay

Features:

  • Small & slim size
  • Forward/reverse motor control is possible with a single relay.
  • Simple footprint enables ease of PC board layout

Applications:

  • Power windows
  • Auto door lock
  • Power sunroof
  • Electrically powered mirrors
  • Powered seats
  • Lift gates
  • Slide door closers, etc.
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
20 Weeks
Minimum Order:
30
Multiple Of:
30
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$43.80
USD
Quantity
Unit Price
15
$1.47
30
$1.46
75
$1.44
150
$1.43
300+
$1.39
