1-1393212-0

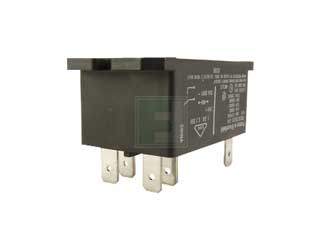

T92 Series 30 A DPST (2 Form A) 24 VDC PCB Mount General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Tray Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2145 | ||||||||||
TE Connectivity 1-1393212-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes:Dear customers, please be aware of an upcoming feature change to the listed T92 CODE1 part numbers with the new injection gate, there is no impact on the product performance with the change, and only to improve the manufacturability of cover part. Change before: There is no ring mark on the gate surface. Change after: There are slight ring mark on the gate surface and the gate diameter is slightly different than before the change.Reason for Changes:To improve the manufacturability of cover part.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393212-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393212-0-te-connectivity-4373122
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393212-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393212-0-te-connectivity-4373122
TE Connectivity 1-1393212-0 - Technical Attributes
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPST (2 Form A) |
| Coil Current: | 30A |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 30A |
| Coil Resistance: | 350Ω |
| Switching Voltage: | 600V |
| Rated Power: | 1.7W |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Operating Temp Range: | -55°C to +85°C |
| Insulation Resistance: | 1GΩ |
| Height - Max: | 30.7mm |
| No of Terminals: | 8 |
| Mounting Method: | PCB Mount |
Features & Applications
The 1-1393212-0 is a T92 Series 30 A DPST (2 Form A) 24 VDC PCB Mount General Purpose Power Relay.
Features:
- 30 A, 2 form A (NO) and 2 form C (CO) switching capability
- Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA
- Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5 mm over surface
- Meets requirements of VDE 8mm spacing, 4 kV dielectric coil-tocontact
- Meets requirements of UL Class F construction
- UL approved for 600 VAC switching (1.5HP)
- New screw terminal version (consult factory for availability, ratings)
Available Packaging
Package Qty:
30 per Tray
Mounting Method:
PCB Mount
