Manufacturer Part #
4-1393789-5

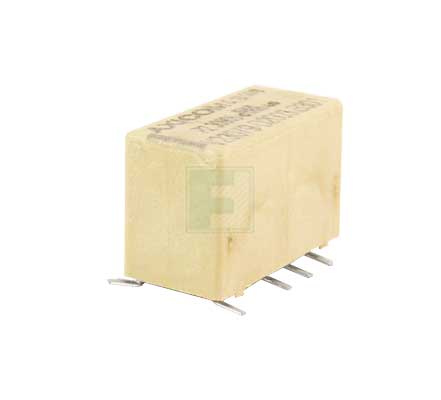

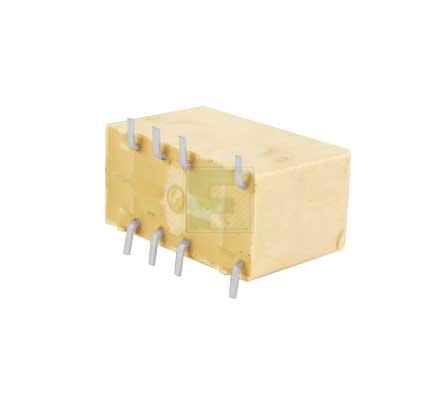

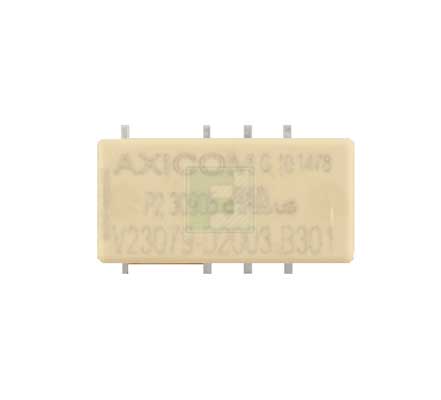

P2 Series 2 A DPDT 12 VDC Surface Mount Communications/Signal PC Board Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:400 per Box Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 4-1393789-5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*** UPDATE FPCN105581 - Material Change - With Additional Part List ***General Description of ChangesTo ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material color appears slightly lighter. The relay form, features and ratings remain unchanged.Reason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
General Description of Changes:To ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material colour appears slightly lighter. The relay form, features and ratings remain unchanged.eason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
General Product Description: Alternative material Vectra E130i is Laperos E130i. Description of Changes No changes of drawing, specifacition, function. P2 relays use Laperos E130i and Vectra E130i with have same properties. Reason for Changes: P2 relay use Vectra E130i and Laperos E130i. Both materials have the same characteristics, passed the same tests and are both UL certified. The relay form (dimensions), features and ratings keep unchanged.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=4-1393789-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/4-1393789-5-te-connectivity-6749758
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=4-1393789-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/4-1393789-5-te-connectivity-6749758
TE Connectivity 4-1393789-5 - Technical Attributes
| Relay Type: | Signal |
| Coil Type: | Non-Latching |
| Contact Form: | DPDT (2 Form C) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 2A |
| Coil Resistance: | 1029Ω |
| Switching Voltage: | 250V |
| Contact Material: | Silver Nickel + Gold (AgNi+Au) |
| Operating Temp Range: | -40°C to +85°C |
| Height - Max: | 9.9mm |
| Termination Style: | Gull Wing |
| No of Terminals: | 10 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
400 per Box
Mounting Method:
Surface Mount
