Manufacturer Part #
4-1419108-2

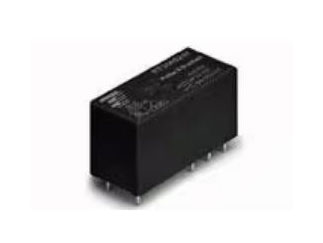

RT2 Series 8 A DPST (2 Form A) 12 VDC Miniature General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 4-1419108-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:RT relay seriesDescription of ChangesThe following part numbers are being modified due to release of an additional plastic material for usage at the base part of the RT relay series. This change makes it happen to use a halogen-free plastic material for reducing the halogen amount used within RT relays. Performance, SSA Approvals (except material addition) as well as specified material parameters remain unchanged. Please get in touch with your local TE sales representative in case of open questions.First Date To Ship (Changed Parts Only): 12-JUN-2023Last Date for Mixed Shipments: (Changed Parts Only): 10-MAR-2024
General Product Description:PCN for RT relaysDescription of ChangesThe following part numbers are being modified due to remove glue at the gate of relay base. This change will improve glue process. This change is just an appearance change, no function and performance influence of relay.Reason for Changes:Product improvement. Dear customer, you are receiving this notice this notice because TE Connectivity has record of you purchasing a part or multiple parts on the list below. These parts are affected by the change mentioned above.First Ship Date of Changed Items (Changed Parts Only):12-JUL-2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=4-1419108-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/4-1419108-2-te-connectivity-1115227
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=4-1419108-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/4-1419108-2-te-connectivity-1115227
TE Connectivity 4-1419108-2 - Technical Attributes
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPST (2 Form A) |
| Coil Current: | 33.3mA |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 8A |
| Coil Resistance: | 360Ω |
| Switching Voltage: | 400V |
| Rated Power: | 0.4W |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| Termination Style: | PC Pin |
| No of Terminals: | 6 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
500 per Tube
Mounting Method:
Through Hole
