Manufacturer Part #
AEP18024

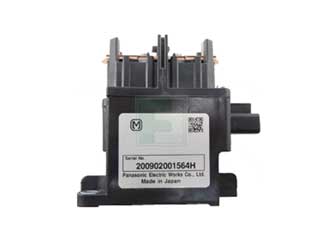

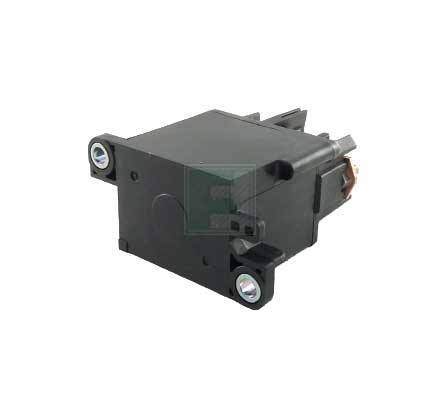

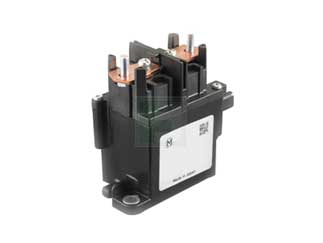

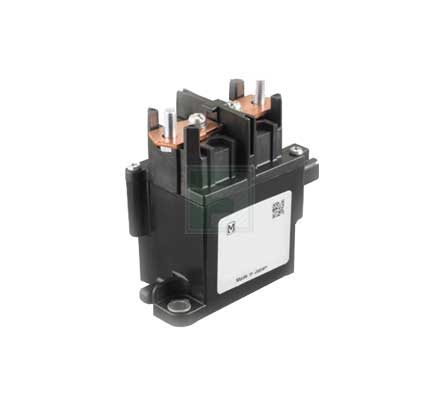

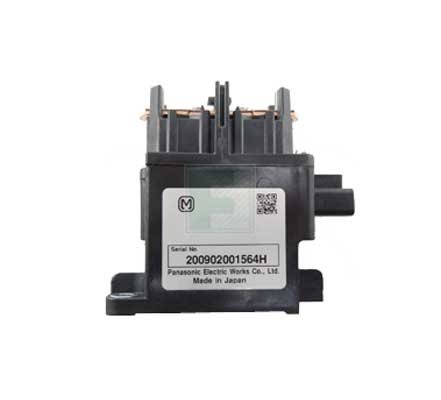

EP Series 80 A SPST 24 VDC Compact High Voltage / Current Cut-Off Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | |||||||||||
Panasonic Industry AEP18024 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:The Panasonic Industry part numbers are being marked as Not Recommended for New Designs (NRFND). As these products are older and demand has steadily declined with no anticipated future growth, we recognize that this change may cause some inconvenience. If recommended alternatives are available, please refer to the attached documents or contact us directly. Panasonic appreciate your business and look forward to continuing to support your needs.Effective Date: 10/01/2025
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AEP18024&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/aep18024-panasonic-industry-3359114
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AEP18024&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/aep18024-panasonic-industry-3359114
Panasonic Industry AEP18024 - Technical Attributes
| Contact Form: | SPST (1 Form A) |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 80A |
| Termination Style: | Screw |
Features & Applications
Panasonic Electric Works of America (formerly Aromat) is a leader in the relay market. The EP series is a high voltage and current cut-off capacity in a compact package. There is a Wide selection of models available, inluding PC board type , TM type (10A), screw terminal type (60A), and connector type (80A and 300A).
Avaialble Contact Arrangements:
AEP1: 1 Form A
AEP3: 1 Form A PC board type (10A type only)
AEP5: 1 Form A TM type (10A type only)
Available Contact Ratings:
1: 10A
6: 60A
8: 80A
9: 300A
TYPICAL APPLICATIONS
• Cogeneration systems
• Construction machinery
• AGV (Automatic guided vehicle) (Unmanned transport carts)
• Battery inspection and testing equipment (charge and discharge control)
• Inverter control
• Solar power generation systems
• Welding equipment
• Elevator
Available Packaging
Package Qty:
1 per Box
