Manufacturer Part #
DSP1-DC24V-R-F

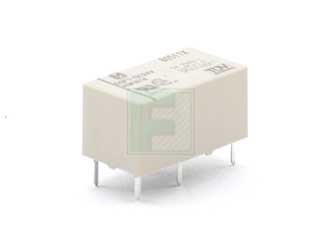

DSP Series 5 A DPST 24 VDC Reverse Polarity Single Side Stable Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry DSP1-DC24V-R-F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Certification Status
04/12/2024 Details and Download
We would like to inform that the safety standard certification mark will change from TUV to VDE on certain relay series.Effective Date: From November2022 production. Change Details: Due to the change of safety standard certification authority for EN61810-1, the TUV mark on certain relay series will be changed to VDE. There is no change in the acquired standard EN61810-1 itself.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DSP1-DC24V-R-F&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/dsp1-dc24v-r-f-panasonic-industry-9132252
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DSP1-DC24V-R-F&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/dsp1-dc24v-r-f-panasonic-industry-9132252
Panasonic Industry DSP1-DC24V-R-F - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPST (1 Form A and B) |
| Coil Current: | 12.5mA |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 5A |
| Coil Resistance: | 1.92kΩ |
| Switching Voltage: | 250V |
| Rated Power: | 300mW |
| Contact Material: | Silver Tin Oxide |
| Operating Temp Range: | -40°C to +65°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
50
$4.26
100
$4.21
150
$4.18
200+
$4.14
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
Through Hole
