Manufacturer Part #
PQ1A-3V

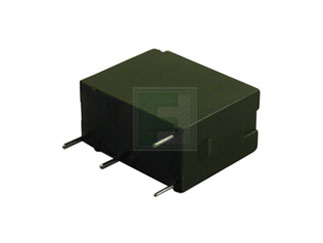

PQ Series 5 A SPST-NO 3 VDC Through Hole Compact Small Size Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry PQ1A-3V - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PQ1A-3V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/pq1a-3v-panasonic-industry-C013553357
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PQ1A-3V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/pq1a-3v-panasonic-industry-C013553357
Panasonic Industry PQ1A-3V - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Coil Current: | 66.7mA |
| Nominal Coil Voltage: | 3V |
| Contact Current-Max: | 5A |
| Coil Resistance: | 45Ω |
| Switching Voltage: | 250V |
| Rated Power: | 200mW |
| Contact Material: | Silver Nickel |
| Operating Temp Range: | -40°C to +70°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Quantity
Unit Price
100
$3.37
200+
$3.31
Product Variant Information section
Available Packaging
Package Qty:
100 per Box
Mounting Method:
Through Hole
