Manufacturer Part #
TQ2-L2-24V

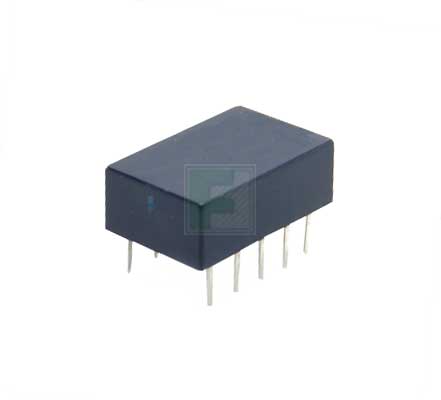

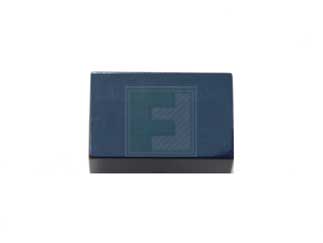

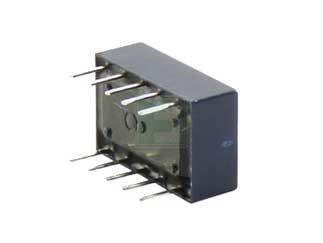

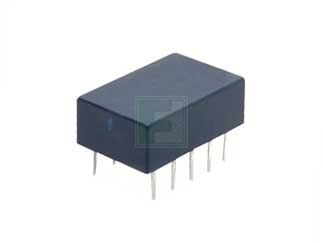

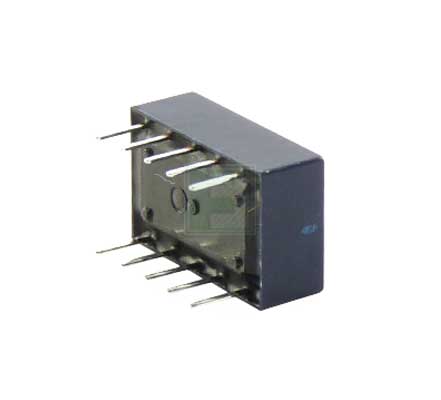

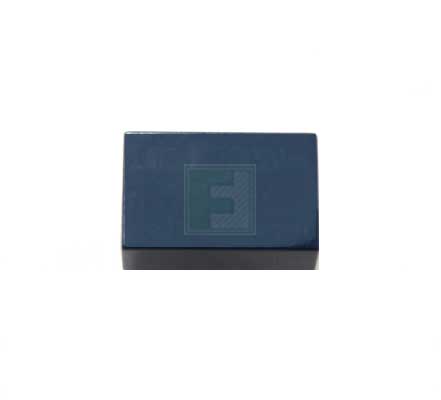

TQ Series Low Profile 1 A DPDT 24 VDC 2 Coil Latching Through Hole Signal Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Panasonic Industry TQ2-L2-24V - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TQ2-L2-24V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--signal-relays/tq2-l2-24v-panasonic-industry-6515621
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TQ2-L2-24V&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--signal-relays/tq2-l2-24v-panasonic-industry-6515621
Panasonic Industry TQ2-L2-24V - Technical Attributes
| Coil Type: | Latching |
| Contact Form: | DPDT (2 Form C) |
| Coil Current: | 12.5mA |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 1A |
| Switching Voltage: | 250V |
| Contact Material: | Silver |
| Operating Temp Range: | -40°C to +85°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PC Pin |
| Mounting Method: | Through Hole |
Features & Applications
With over 30 years experience, Panasonic Electric Works of America (formerly Aromat) is a recognized leader in the signal relay market. The TQ series, highly regarded for its quality and dependability, is ideal for telecommunication applications including WiFi, handheld devices, instrumentation, and ATE. The TQ Series relay offers voltage ratings from 3 to 48 volts and is rated to 1 amp.
The TQ series from Panasonic Electric Works (PEW) is a low profile, highly sensitive Signal relay available in either Double Pole Double Throw (TQ2 series), or Four Pole Double Throw (TQ4 series) contact arrangements. The TQ series is available in either single side stable or 1 or 2 coil latching.
The TQ2-L2-24V is a low profile high sensitive signal relay. The TQ2-L2-24V is a Double Pole Double Throw (DPDT) and is rated at 1 Amp. The TQ2-L2-24V is only available in through hole mounting and is 2 coil latching with a nominal coil voltage of 24 VDC.
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
Through Hole
