TE Connectivity | 1393030-7

Manufacturer Part #

1393030-7

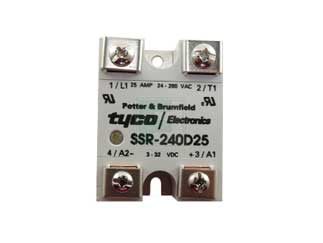

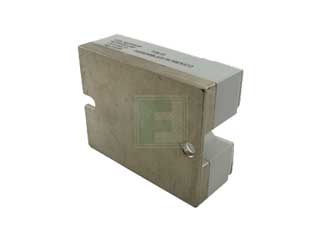

SSR Series 25 A 32 V One Channel Hockey PUK Screw Terminal Solid State Relay

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1393030-7 - Technical Attributes
Attributes Table
Contact Form: SPST (1 Form A)
Control Voltage: 3V to 32V
Output Voltage: 24V to 240V
Contact Current-Max: 25A
Isolation Voltage-RMS: 4000V
Package Style:  HOCKEY PUCK
Mounting Method: Chassis Mount
Features & Applications

The 1393030-7 is a SSR Series 25 A 32 V One Channel Hockey PUK Screw Terminal Solid State Relay.

It has an Operating temperature ranges b/w -20 °C to 80 °C and available in hockey puck package.

Product Features:

  • Product Type = Relay
  • Series = SSR
  • Termination Type = Screws
  • Housing Style = Hockey Puck
  • Current Rating (A) = 25
  • Input Voltage (VDC) = 3 – 32
  • Output Voltage, Max. (V) = 240
  • Output Current, Min. (A) = 0.05
  • Relay Type = Solid State - Paired SCR Output
  • Switch Arrangement = 1 Form A (SPST-NO)
  • Output Switching = Zero
  • Output Type = AC
  • Mounting Options = Chassis Mount
  • Approx. Dimensions (L x W x H) (mm)= 44.40 x 57.20 x 22.00
  • Coupling = Optical

View the List of Solid State Relay Series

Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
49 Weeks
Minimum Order:
400
Multiple Of:
22
Total
$10,588.00
USD
Quantity
Unit Price
22+
$26.47
