Manufacturer Part #
1825006-7

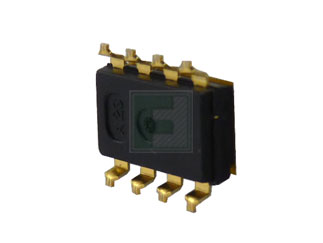

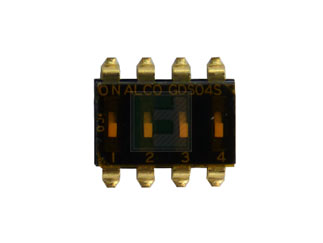

GDS Series 4 Switches 2.54mm Single Pole Surface Mount Mechanical DIP Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:40 per Box Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 1825006-7 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes:As of February 2025, the location of manufacturing for p/ns listed in this PCN will be moved from one location to another facility within Shenzhen China. There is no Form Fit or Function change to any of the products involved, the process and manufacturing team remains unchanged.Reason for Changes:Manufacturing location change
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825006-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825006-7-te-connectivity-4022547
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825006-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825006-7-te-connectivity-4022547
TE Connectivity 1825006-7 - Technical Attributes
| Type: | Dip |
| No of Positions: | 4 |
| Circuitry: | SP |
| Actuator Style: | Slide |
| Operating Force: | 600gf |
| Termination Style: | Outside L |
| Sealed Option: | Sealed |
| Contact Resistance: | 100mΩ |
| Voltage Rating: | 50V |
| Current Rating: | 100mA |
| Insulation Resistance: | 100MΩ |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -45°C to +100°C |
| Mounting Method: | Surface Mount |
Features & Applications
The 1825006-7 is a Part of GDS Series, 4 Switches 2.54mm Single Pole Surface Mount Mechanical DIP Switch.
Features:
- Product Type = Switch
- PCB Mount Style = Surface Mount
- Configuration (Pole-Throw) = Single Pole - Single Throw
- Actuator Style = Slide
- Sealed = Yes
- Series = GDS
- Number of Switches = 4
- Termination Style = Outside "L"
- Switch Type = DIP
- Centerline (mm [in]) = 2.54 [0.100]
- Length (mm [in]) = 10.01 [0.394]
- Auto-Insertable = Yes
- Contact Base Material = Copper Alloy
- Contact Plating, Mating Area, Material = Gold
Available Packaging
Package Qty:
40 per Box
Mounting Method:
Surface Mount
