Manufacturer Part #
195-2MST

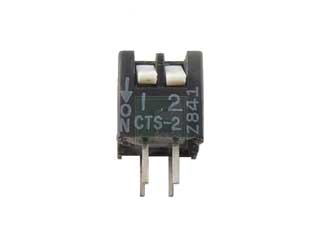

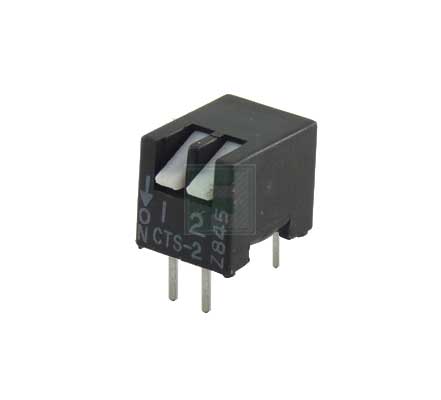

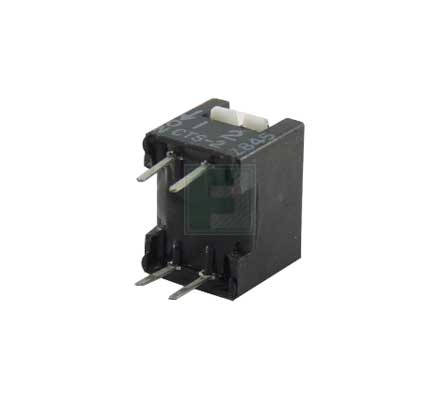

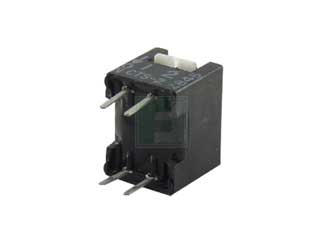

195 Series Side Actuated SPST 2 Position Through Hole DIP Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | CTS | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:75 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2530 | ||||||||||
Product Specification Section
CTS 195-2MST - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=195-2MST&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/195-2mst-cts-7223902
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=195-2MST&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/195-2mst-cts-7223902
CTS 195-2MST - Technical Attributes
Attributes Table
| Type: | Dip |
| No of Positions: | 2 |
| Circuitry: | SPST |
| Actuator Style: | Standard |
| Termination Style: | PCB |
| Sealed Option: | Sealed |
| Mounting Method: | Through Hole |
Features & Applications
The 195-2MST is a part of 195 series DIP Switch. It has an operating temperature ranging from -40 °C to +85 °C.
Features:
- Optimized Mechanical Features:
- Enclosed actuators shield contacts from foreign particles throughout life of switch
- Standard 2.54mm (.100") x 7.62mm (.300") DIP centers
- Optimized Contact System:
- Contact wiping action on make and break
- Integral terminal and contact locked into high temperature plastic base
- Lock-over-center design provides positive detent action
- Optimized, active contact design incorporating a dimpleto-flat surface wiping interface with high contact force
- Materials:
- Series 194 - gold plated contacts for long-term contact corrosion resistance
- Series 195 - tin plated contacts
- Tin plated terminals for better solderability
- UL 94V-0 plastics
- RoHS compliant
Pricing Section
Global Stock:
4,281
USA:
4,281
On Order:
0
Factory Lead Time:
4 Weeks
Quantity
Unit Price
1
$0.47
50
$0.46
150
$0.45
300
$0.445
1,000+
$0.42
Product Variant Information section
Available Packaging
Package Qty:
75 per Tube
Mounting Method:
Through Hole
