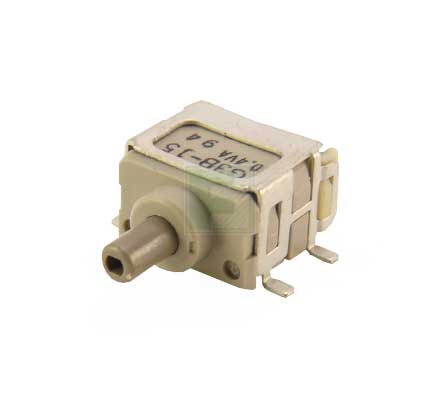

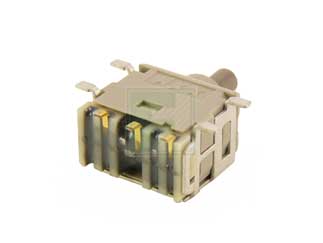

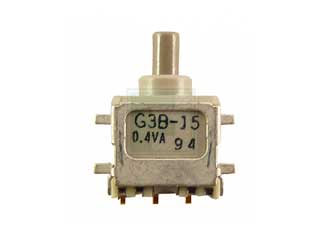

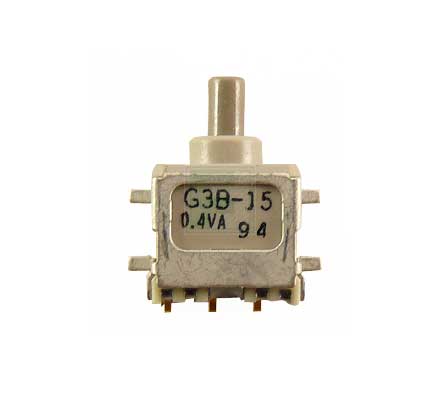

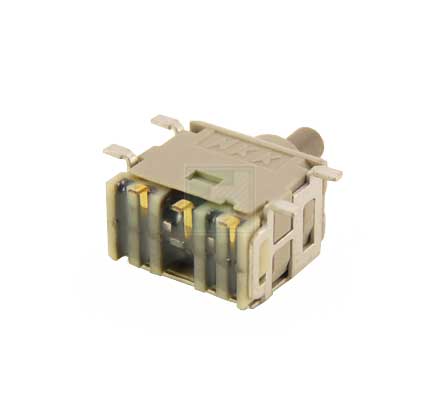

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

G3B15AH-XC

G3B Series Mini SPDT On-Momentary Right Angle Surface Mount Pushbutton Switch

G3B15AH-XC Datasheet G3B15AH-XC Documentation 3D Drawings
ECAD Model: Download the CAD models for this product. Learn more about SnapMagic.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Std. Mfr. Pkg Std. Mfr. PkgSelected Variant Qty: 1+ / Unit Price: $8.00 / Stock: 0 Qty: 1+$8.00 Stock: 0 Package Qty: 1 per Std. Mfr. Pkg Mounting Method: PCB Mount
Date Code:

NKK Switches G3B15AH-XC - Technical Attributes

Contact Current-Max:	0.1A
Switch Operation:	On-Mom
Circuitry:	SPDT
Illumination Color:	Red
Actuator Style:	Pushbutton
Termination Style:	Right Angle
Mounting Method:	PCB Mount

Features & Applications

The G3B15AH-XC-RO is a Mini SPDT On-Momentary Right Angle Surface Mount Push Button Switch. These switches is of heat resistant resin used for housing, base, and plunger allows vapor phase and infrared convection reflow soldering.

Combination of design features achieves total seal and allows automated processing techniques, including flux
cleaning procedures: one-piece bushing and housing, rubber seals surrounding actuator and base, epoxy at
joint of case and base, and molded-in, epoxy-sealed terminals.

Features:

Ultra-miniature size allows high density mounting, and extremely light weight of 0.6 gram makes these switches ideal for handheld equipment
Logic Level: 0.4 VA maximum @ 28 V AC/DC maximum
Operating Temperature Range: –30°C through +85°C (–22°F through +185°F)
These switches are designed for use in a low-voltage, low-current, logic-level circuit
When used as intended in a logic-level circuit, the results do not produce hazardous energy
