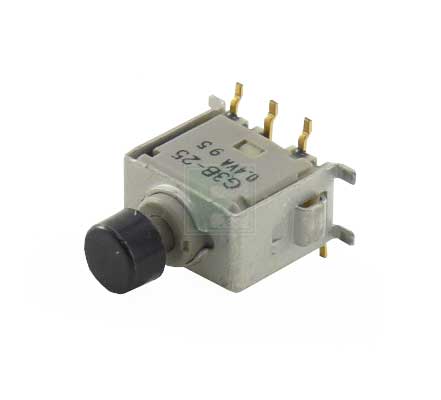

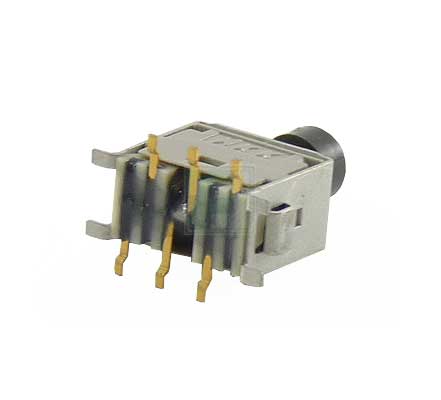

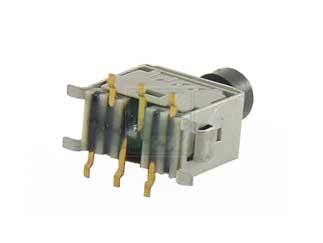

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

G3B25AB-S-YA

G3B Series Mini DPDT On-Momentary Gull Wing Surface Mount Pushbutton Switch

G3B25AB-S-YA Datasheet G3B25AB-S-YA Documentation 3D Image
ECAD Model: Download the CAD models for this product. Learn more about SnapMagic.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Tube TubeSelected Variant Qty: 50+ / Unit Price: $9.39 / Stock: 0 Qty: 3+$9.39 Stock: 0 Package Qty: 50 per Tube Mounting Method: Surface Mount
Date Code:

NKK Switches G3B25AB-S-YA - Technical Attributes

Rated Voltage (VAC):	28VAC
Rated Voltage:	28V
Switch Operation:	On-Mom
Circuitry:	DPDT
Insulation Resistance:	500MΩ
Illumination Color:	No
Cap Color:	Black
Actuator Style:	Plunger
Termination Style:	Gull Wing
Operating Temperature:	-30°C to +85°C
Contact Plating:	Gold
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The G3B25AB-S-YA-RO is a Mini DPDT On-Momentary Gull Wing Surface Mount Push Button Switch. These switches is of heat resistant resin used for housing, base, and plunger allows vapor phase and infrared convection reflow soldering.

Combination of design features achieves total seal and allows automated processing techniques, including flux
cleaning procedures: one-piece bushing and housing, rubber seals surrounding actuator and base, epoxy at
joint of case and base, and molded-in, epoxy-sealed terminals.

Features:

Ultra-miniature size allows high density mounting, and extremely light weight of 0.6 gram makes these switches ideal for handheld equipment
Logic Level: 0.4 VA maximum @ 28 V AC/DC maximum
Operating Temperature Range: –30°C through +85°C (–22°F through +185°F)
These switches are designed for use in a low-voltage, low-current, logic-level circuit
When used as intended in a logic-level circuit, the results do not produce hazardous energy
