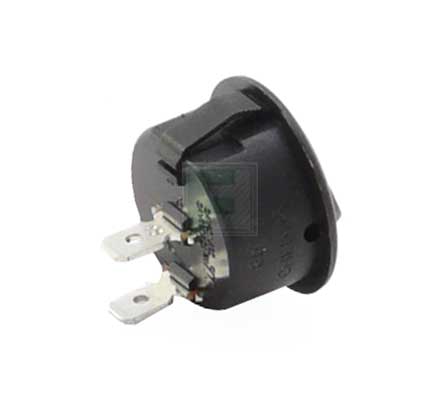

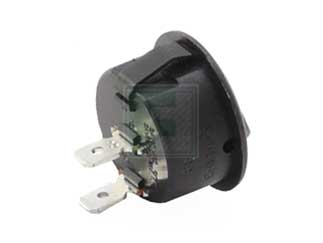

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

SRJ22A3BBBNN

SR Series 20 A Mini SPST On-Off Panel Mount Quick Connect Rocker Switch

SRJ22A3BBBNN Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	ZF Electronics
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 100 per Bag Mounting Method: Panel Mount
Date Code:

ZF Electronics SRJ22A3BBBNN - Technical Attributes

Switch Operation:	On-Off
Circuitry:	SPST
Current Rating:	20A
Termination Style:	Quick Connect
Contact Material:	Silver Over Copper
Mounting Method:	Panel Mount

Features & Applications

Cherry is a global leader in the design, development and manufacture of Snap Action Switches, Rocker Switches, Keyboards and Sensors. Taking pride in the company’s vigorous innovation policy and superior customer service guidelines, product performance meets the highest standards for quality, reliability and durability. Utilizing the latest design automation tools and in-house prototyping systems, Cherry offers the rapid designs and working prototypes for your application.

The SR Series of Miniature Rocker Switches are offered with a 10 amp or 20 amp current rating with single and double pole configurations. This economical rocker switch is available in a wide variety of colors and actuator marking with lighted or non-lighted versions.

Typical applications for the SR Series include:

Medical and Dental Equipment
Small Appliances
Vending Machines
Power Supplies
Surge Protectors

The SRJ22A3BBBNN is rated at 20 amps with single pole, single throw (SPST) switch operation and On-Off function. This is a non-lighted switch with black housing and actuator and with no markings on the round rocker. Termination is straight 4.8mm (0.187”) quick connect.
