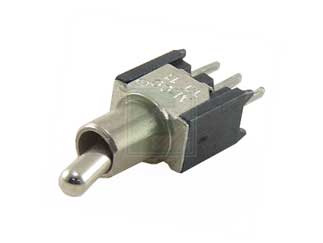

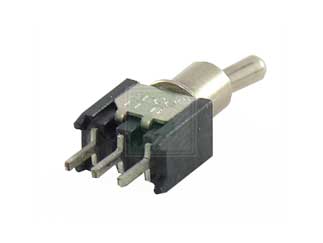

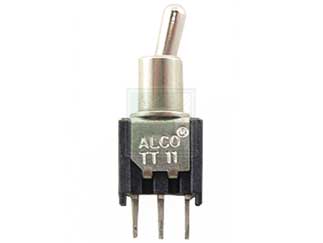

TT Series SPDT (On On) 0.4 Amp 5.49 mm Baton PCB Terminate Toggle Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1825219-3 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825219-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/1825219-3-te-connectivity-8574782
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825219-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/1825219-3-te-connectivity-8574782
TE Connectivity 1825219-3 - Technical Attributes
Attributes Table
| Switch Operation: | On-On |
| Circuitry: | SPDT |
| Rated Voltage (VAC): | 20VAC |
| Voltage Rating: | 20V |
| Current Rating: | 0.4A |
| Insulation Resistance: | 1000MΩ |
| Contact Material: | Gold Over Silver |
| Contact Plating: | Gold |
| Actuator Type: | Toggle |
| Termination Style: | PC Pin |
| Dielectric Withstanding Voltage: | 1000V |
| Bushing Style: | Unthreaded |
| Operating Temperature: | -30°C to +85°C |
| Dimension: | L 8.13mm x W 5.99mm x H 19.38mm |
| Mounting Method: | Through Hole |
Features & Applications
The 1825219-3 is a part of TT Series SPDT (On-none-On) 0.4 Amp 5.49 mm Baton PCB Terminate Sub miniature Toggle Switch.
Product Specifications:
- Number of poles: up to 4
- Contact timing: Break before Make
- Right angle versions: right angle and vertical right angle
- Standard number of positions: 2 or 3
- Terminals / Mounting style: THT, Wire lug, Wire wrap; Various bushings versions
- Actuator style: Various lengths, round, flat, locking
- Contact rating: Gold: 20 mA @ 20 Vdc, Silver (2pos): 3A@125Vac, 28Vdc, Silver (3pos): 2A@125Vac, 28Vdc
- Electrical endurance: 60,000 ops
- Operating temperature range: -30°C to 85°C
- Dimensions case (LxWxH): 8.1 x 6 x 8.8...15.7 mm
