Manufacturer Part #
E203MD9V91GE

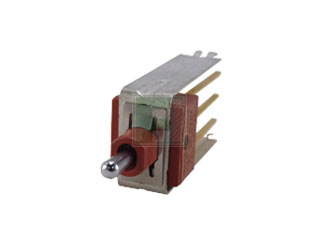

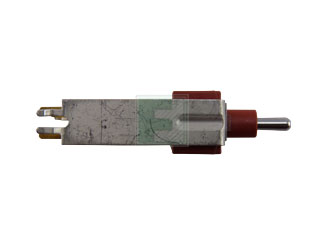

E203 Series Mini DPDT On-Off-On V Bracket Through Hole Toggle Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:40 per Tray Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K E203MD9V91GE - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
Viet Nam
HTS Code:
8536.50.90.65
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=E203MD9V91GE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/e203md9v91ge-c&k-9747981
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=E203MD9V91GE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/e203md9v91ge-c&k-9747981
C&K E203MD9V91GE - Technical Attributes
Attributes Table
| Switch Operation: | On-Off-On |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 125VAC |
| Voltage Rating: | 28V |
| Current Rating: | 7.5A |
| Insulation Resistance: | 1GΩ |
| Contact Plating: | Gold |
| Actuator Type: | Round |
| Termination Style: | PC Pin |
| Dielectric Withstanding Voltage: | 1000V |
| Bushing Style: | Unthreaded |
| Operating Temperature: | -30°C to +85°C |
| Dimension: | L 27.94mm x W 11.43mm x H 12.7mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
40+
$13.30
Product Variant Information section
Available Packaging
Package Qty:
40 per Tray
Mounting Method:
Through Hole
