Manufacturer Part #
MODULED PICO 4780-B

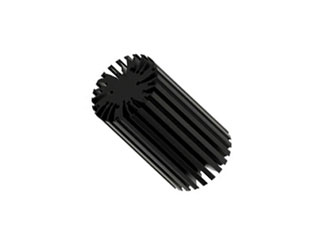

Black Anodized Ø 47 x 80 mm 4.2°C/W Modular LED Star Heat Sink
| | |||||||||||
| | |||||||||||
| Mfr. Name: | MechaTronix | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2 per Box | ||||||||||
| Date Code: | |||||||||||
MechaTronix MODULED PICO 4780-B - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MODULED PICO 4780-B&field4=MechaTronix&field18=https://p1na.futureelectronics.com/p/electromechanical--thermal-management--heatsinks-accessories/moduled-pico-4780-b-mechatronix-2077312
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MODULED PICO 4780-B&field4=MechaTronix&field18=https://p1na.futureelectronics.com/p/electromechanical--thermal-management--heatsinks-accessories/moduled-pico-4780-b-mechatronix-2077312
MechaTronix MODULED PICO 4780-B - Technical Attributes
| Thermal Resistance: | 4.2°C/W |
| Material: | Black Anodized |
| Dimension: | H 80mm x D 47mm |
Features & Applications

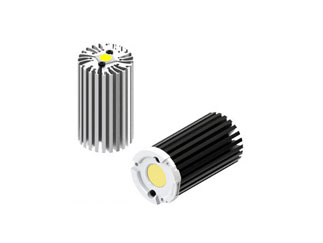

LED star cooler for spot and downlight designs from 600 to 2,200 lumen
Diameter 47mm - Height 80mm - Thermal resistance Rth 4.2°C/W
Modular design with mounting holes foreseen for direct connection of
- Zhaga Book 3 Spot Light Modules Edison Edilex SLM, Osram PrevaLED Core AC / AC PRO / Z3 / Z4, Philips Fortimo SLM, Tridonic Talexx Stark SLE G3 / G4, Vossloh Schwabe Luga Shop, ...
- Bridgelux BXRA ESS, ESR, Vero 10, Vero 13, V-series
- Citizen Citiled CLL022-CLU024, CLL032-CLU034 Cree XLamp CXA13, CXB13, CXA15, CXB15
- Edison EdiPower II Star/HM/CAC series
- LG Innotek LEMWM18 10W, 13W, 17W
- Lumileds Luxeon COB's 1203, 1204, 1205, Luxeon K arrays K12, K16
- Luminus CLM-9, CXM-9, CHM-9, CXM-11, CLM-14, CXM-14, CHM-14
- Lustrous LUSTRON 6 series LL604F, LL608D, LL613F, LL620F
- Osram Soleriq P6, P9, P13, S13, S19, E30
- Prolight Opto PACE, PABS, PABA, PACB, PANA
- Seoul Semiconductor ZC6, ZC12, ZC18 Sharp Mega Zenigata, Mini Zenigata
- Tridonic Talexx Stark SLE GEN3 Mini LES-10/LES-17, Gen4-15mm
- Vossloh Schwabe Luga Shop C 2016 DMC 124, 125, 128
Available Packaging
Package Qty:
2 per Box
