Abracon | ASV-11.0592MHZ-EJ-T

Manufacturer Part #

ASV-11.0592MHZ-EJ-T

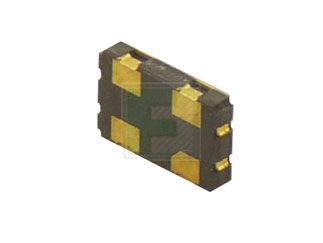

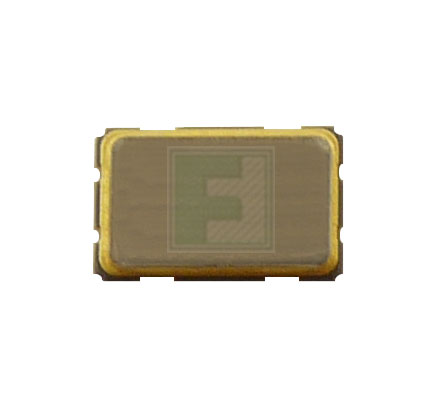

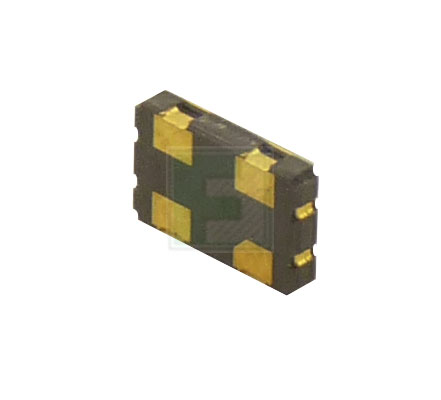

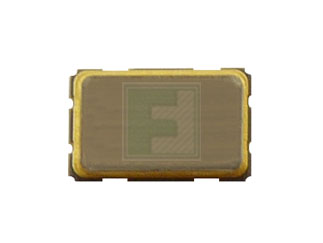

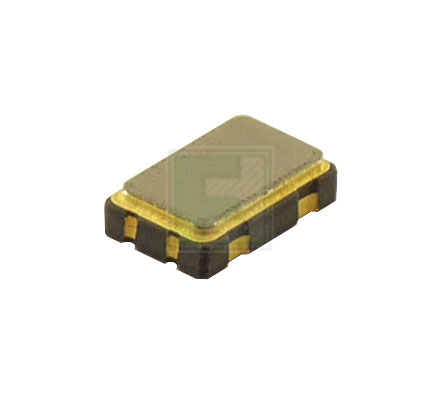

ASV Series 11.059 MHz 7 x 5.08 mm 3.3 V ±100 ppm SMT Crystal Clock Oscillator

ECAD Model:
Mfr. Name: Abracon
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Abracon ASV-11.0592MHZ-EJ-T - Technical Attributes
Attributes Table
Operating Frequency: 11.0592MHz
Frequency Stability: ±20ppm
Supply Voltage: 3.3V
Operating Temp Range: -20°C to +70°C
Dimension: L  7mm x W  5.08mm x H  1.8mm
Mounting Method: Surface Mount
Features & Applications

The ASV Series ASV 11.059 MHz Low Profile 7 X 5.08 mm 3.3 V 100 PPM SMT Oscillator

Features:

  • Leadless chip carrier (LCC), Low profile.
  • HCMOS/TTL Compatible, 3.3 Vdc, 2.5 Vdc, & 1.8 Vdc operation.
  • Seam welding, Reflow capable.
  • Seam welding, 1.4 max. height (ASV1)

Applications:

  • Provide clock signals for microprocessors
  • High output drive capability applications.
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
1000
Multiple Of:
1000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$670.00
USD
Quantity
Unit Price
1,000+
$0.67
