Manufacturer Part #

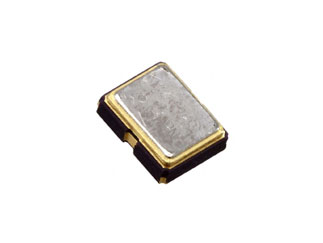

ECS-2333-500-BN-TR
ECS-2333,OSC XO 50.000MHZ CMOS SMD,3.3V,50ppm,-40C 85C
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ECS Inc. | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:SMD-4 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2411 | ||||||||||
Product Specification Section
ECS Inc. ECS-2333-500-BN-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ECS-2333-500-BN-TR&field4=ECS Inc.&field18=https://p1na.futureelectronics.com/p/electromechanical--timing-devices--oscillators/ecs-2333-500-bn-tr-ecs-inc.-5155598
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ECS-2333-500-BN-TR&field4=ECS Inc.&field18=https://p1na.futureelectronics.com/p/electromechanical--timing-devices--oscillators/ecs-2333-500-bn-tr-ecs-inc.-5155598
ECS Inc. ECS-2333-500-BN-TR - Technical Attributes
Attributes Table
| Oscillator Type: | XO Standard |
| Operating Frequency: | 50MHz |
| Frequency Stability: | ±50ppm |
| Supply Voltage: | 2.97V to 3.63V |
| Supply Current: | 19mA |
| Symmetry: | 45% to 55% |
| Load Capacitance: | 15pF |
| Output Type: | HCMOS |
| Operating Temp Range: | -40°C to +85°C |
| Rise Time: | 10ns |
| Fall Time: | 10ns |
| Dimension: | L 3.2mm x W 2.5mm x H 1mm |
| No of Terminals: | 4 |
| Package Style: | SMD-4 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,000
USA:
1,000
On Order:
0
Factory Lead Time:
11 Weeks
Quantity
Unit Price
1,000+
$0.615
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
SMD-4
Mounting Method:
Surface Mount
