TE Connectivity | 2-5174339-5

Manufacturer Part #

2-5174339-5

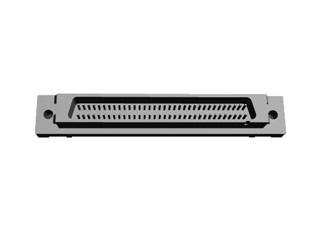

68 Position Dual Row 1.27 mm Vertical Through Hole Amplite PCB Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 2-5174339-5 - Technical Attributes
Attributes Table
Type: Header
Style/Orientation: Straight Header/Plug
No of Positions: 68
Pitch: 1.27 mm
Termination: Solder
Mounting Method: Through Hole
Features & Applications

The 2-5174339-5 is a 68 Position Dual Row 1.27 mm Vertical Through Hole Amplite PCB Header.

Features:

  • Product Type = Connector
  • PCB Mounting Orientation = Vertical
  • Termination Method to PC Board = Through Hole - Solder
  • PCB Mount Retention = With
  • PCB Mount Alignment = Without
  • Shell Type = Full Metal
  • Product Series = Series II
  • Shell Material = Zinc Die Cast
  • Post Plate Material = Thermoplastic
  • Retention Leg Material = Nickel
  • Retention Leg Plating = Brass
  • Number of Positions = 68
  • PCB Mount Retention Type = Boardlock(s)
  • Centerline (mm [in]) = 1.27 [0.050]
  • Post Plating = Tin over Nickel
  • Shell Plating = Nickel over Copper
  • Contact Plating, Mating Area, Material = Gold (30)
  • Contact Base Material = Phosphor Bronze
  • Connector Style = Plug
  • Mating Alignment = Without





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
20 Weeks
Minimum Order:
420
Multiple Of:
420
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$8,232.00
USD
Quantity
Unit Price
420+
$19.60
