AAC22FSLN

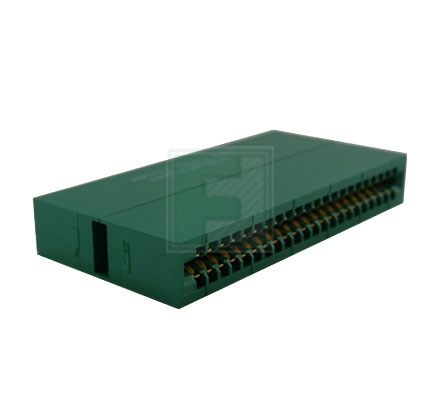

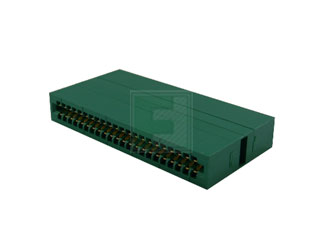

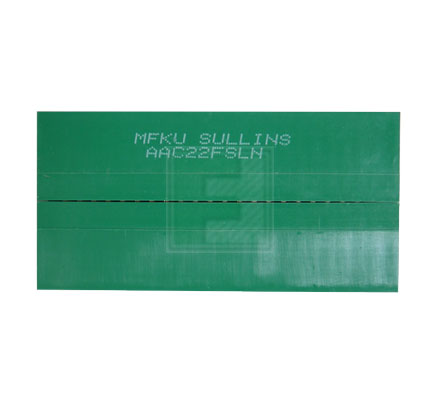

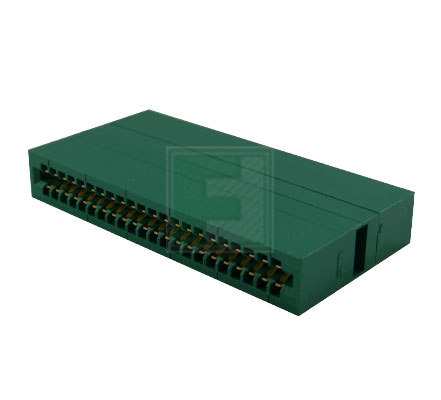

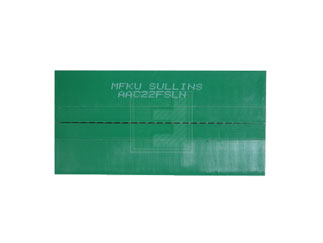

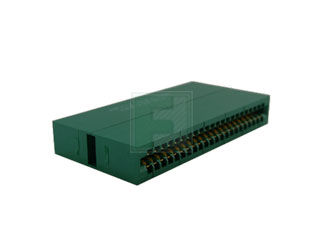

44 Position 2.54 mm Center Free Hanging Dual Readout Edge Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Sullins AAC22FSLN - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AAC22FSLN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/aac22fsln-sullins-5009013
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AAC22FSLN&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/aac22fsln-sullins-5009013
Sullins AAC22FSLN - Technical Attributes
Attributes Table
| Type: | Board to Board (Card Edge) |
| Style/Orientation: | Free Hanging In-line |
| No of Positions: | 44 |
| Pitch: | 2.54 mm |
| Termination: | Straddlemount Tails |
Features & Applications
The AAC10FSLN series is a 44 position 2.54 mm pitch dual edge connector. It is having operating temperature of -65° C to +150° C and processing temperature of 260°C For 120 sec.
Features:
- PPS/Beryllium Copper
- Operating Temperature -65°C to +150°C
- Processing Temperature 260°C FOR 120 sec. MAX
- Contact Surface both sides .000030” Gold
- .100” [2.54mm]
- 44 total contacts
- Dual Edge Connector Single Level
- No Mounting Ears
Specifications:
- Now available in 0.100"[2.54 mm] pitch with 5-60 pins per row
- Supports an operating temperature of up to 150°C
- Fits 0.062"[1.57mm]-thick PC boards in both card slots
- Mounting styles include straddle mount, ?ush mounting holes, or no mounting
- Standard 30u" selective gold plating promotes long lasting usage
- Current rating 3 Amperes per contact
- Contact resistance 30 Milliohms max
- Insulation resistance 5000 Megohms
- Alternate contact centers, mounting options and board thicknesses available upon special request
Applications:
- Easily replaceable without the need of desoldering
- High signal integrity connector interface for R&D and Life Tests applications
- HTOL, HAST & LTOL and in-line production and burn-in testing compatible
- Superior durability of 500 mating cycles
