Manufacturer Part #
1-206062-4

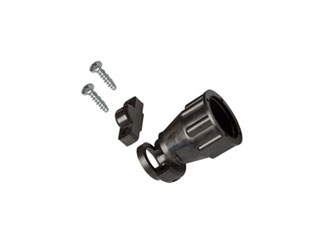

Standard Size 11 Cable Clamp Backshell for CPC Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bag | ||||||||||
| Date Code: | 2348 | ||||||||||
TE Connectivity 1-206062-4 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Description:CPC accessories (cable clamps, protective caps and extenders)General Description of ChangesThe CPC portfolio is undergoing material harmonization to a consolidated Polybutylene Terephthalate (PBT) resin, including the transition of Nylon (PA) components and the incorporation of all applicable parts into the updated material framework. The new PBT material meets all current functional and performance requirements of the component and is fully qualified for the intended application. Minor feature changes with no impact on component performance were implemented only to the parts listed in the attachment section. All other components are undergoing a material transition only. ** This PCN replaces PCN-25-255800, PCN-25-255801 and PCN-25-255802, previously canceled by PCN-25-258894-C **Reason for Changes:We are transitioning and consolidating to a new resin material (PBT) as part of our commitment to sustainability and improved service. This material change enables a reduction of approximately 30% in CO emissions and enhances supply chain reliability. It also supports better alignment across our product lines, helping us respond more consistently to customer needs and maintain a high level of service.First Ship Date of Changed Items (Changed Parts Only):15-MAR-2026
***CANCELLATION OF SPCNs: PCN-25-255800,PCN-25-255801,PCN-25-255802...Future PCNs: 115770, 115811, 115812***Reason for Cancellation:PCN-25-255800, PCN-25-255801 and PCN-25-255802 will be cancelled and reissued to update the attached documents. Please disregard the earlier versions and refer to the updated PCN once it is sent. Current PCNs' first ship date (2026-03-15) will remain the same on the upcoming updated PCN.Initial Description of Changes:The material used in the CPC portfolio is being transitioned from Nylon (PA) to Polybutylene Terephthalate (PBT) resin. The new PBT material meets all current functional and performance requirements of the component and is fully qualified for the intended application. Small modification were added to some components not affecting performance.
Product Description: CPC accessories (cable clamps, protective caps and extenders)General Description of ChangesThe material used in the CPC portfolio is being transitioned from Nylon (PA) to Polybutylene Terephthalate (PBT) resin. The new PBT material meets all current functional and performance requirements of the component and is fully qualified for the intended application. Small modification were added to some components not affecting performanceReason for Changes:We are transitioning to a new resin material(PBT) as part of our commitment to sustainability and improved service. This material change enables a reduction of approximately 30% in CO emissions and enhances supply chain reliability. It also supports better alignment across our product lines, helping us respond more consistently to customer needs and maintain a high level of service.First Ship Date of Changed Items (Changed Parts Only):15-MAR-2026
Product Description:CPC accessories (cable clamps, protective caps and extenders)General Description of ChangesThe material used in the CPC portfolio is being transitioned from Nylon (PA) to Polybutylene Terephthalate (PBT) resin. The new PBT material meets all current functional and performance requirements of the component and is fully qualified for the intended application. Small modification were added to some components not affecting performanceReason for Changes:We are transitioning to a new resin material(PBT) as part of our commitment to sustainability and improved service. This material change enables a reduction of approximately 30% in CO emissions and enhances supply chain reliability. It also supports better alignment across our product lines, helping us respond more consistently to customer needs and maintain a high level of service.First Ship Date of Changed Items (Changed Parts Only):15-MAR-2026
Product Description:CPC accessories (cable clamps, protective caps and extenders)General Description of ChangesThe material used in the CPC portfolio is being transitioned from Nylon (PA) to Polybutylene Terephthalate (PBT) resin. The new PBT material meets all current functional and performance requirements of the component and is fully qualified for the intended application. Small modification were added to some components not affecting performanceReason for Changes:We are transitioning to a new resin material(PBT) as part of our commitment to sustainability and improved service. This material change enables a reduction of approximately 30% in CO emissions and enhances supply chain reliability. It also supports better alignment across our product lines, helping us respond more consistently to customer needs and maintain a high level of service.First Ship Date of Changed Items (Changed Parts Only):15-MAR-2026
Description of ChangesThis document is intended to clarify the products involved in PCNs P-24-026509 and P-24-026510. The documents have undergone a minor visual change only, with no impact on product performance or functionality. These PCNs, including the previous ones mentioned above, were created solely to inform customers in the APAC region and other interested parties.Reason for Changes:Document clarification.This document serves to clarify the changes involved: The threads now include some interrupted sections due to improvements in the molding process and overall quality enhancements. The AMP logo, previously used as a TE registered trademark, has been updated to the TE logo. The injection gate in the China tooling was relocated to improve resin flow and ensure better distribution during the molding process. These slight modifications do not affect the functionality or performance of the products (accessories) for their intended use.
Description of Changes: DUAL SOURCE MANUFACTURING SITEReason for Changes: Document clarification.Due Demand and Logistic improvement, TE Suzhou, China plant (1099), will produce, CPC Cable Clamp kits as well as TE Hermosillo, Mexico plant (1080) to absorb Asia Region (APAC) demand and speed up deliver time to customer. First shipment will be according to each agreement with customer and could be from 60, 90, 180 or 365 days as wait period, being able to have a faster response from the customer to this notification through direct communication with them, reducing these waiting times for their prompt demand and delivery of the products involved.
CPC Cable Clamp Kit drawing 206062 and CPC Plug Assembly drawingDescription Of Change: 1) Add new part number 788153-3 to customer drawing 788153. 2) Add new part number 2-206062-0 to customer drawing 206062. 3) Change the revision letter of 788153-2 from 0 to A. There have been no changes to the existing parts, the drawings have been modified to show a new product offering.Reason For Change: New Product. New part numbers were released to quote new business. The revision letter of 788153-2 must change to match the new revision letter of the drawing. No physical changes are being made to 788153-2, the only change is the revision letter.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-206062-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-206062-4-te-connectivity-5186788
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-206062-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1-206062-4-te-connectivity-5186788
TE Connectivity 1-206062-4 - Technical Attributes
| Type: | Hardware |
| Accessory Type: | Backshell |
| Color: | Black |
| Material: | Thermoplastic |
Features & Applications
Tyco Electronics is the world’s leading connector manufacturer. Tyco Electronics CPC (Circular Plastic Connector) series is one of the most popular all plastic connectors in use today.
CPCs lightweight rugged body construction and positive-lock coupling ring ensures this connector family is well suited for a wide variety of applications including operation within harsh environments where operating temperature might vary from -55C to 125C.
The 1-206062-6 is a Standard Size Cable Clamp which has been designed to fit CPC series 1 plugs and receptacles with a size 11 shell.
The 1-206062-6 limits the strain placed on the wire/cable connected to the connectors contacts.
Available Packaging
Package Qty:
1 per Bag
