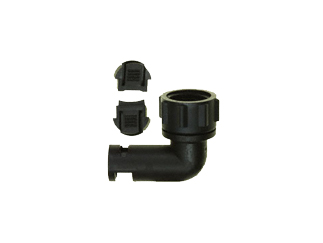

TE Connectivity | 1445771-1

The 1445771-1 connector system available in wire-to-wire, wire-to-board and wire-to-panel configurations. Two shell sizes: Size 8 (1-4) or Size 11 (5-9) contact positions Utilizes existing Mini-Universal MATE-N-LOK stamped and formed contacts designed for up to 500 mating cycles when plated with gold or up to 50 cycles with tin plating.

Features:

• Pre-positioned 1/4 turn coupling ring with positive lock and alignment features
• Unique contact pattern for each position size helps prevent accidental mating with other position sizes
• Sealed to IP67 (Protected against immersion in water up to 1 meter for 30 minutes) Front or rear jam nut mounting
• No assembly required
• Receptacle available in free-hanging or panel mount versions
• Alternate keys available

Applications:

• Ideal for Industrial, Instrumentation and Transportation applications where size, contact density and environmental exposure are primary concerns.
• Nylon housings offer good resistance to a wide range of chemical agents while the IP67 sealing helps prevent ingress of dirt or fluids that could have an adverse effect on the contact interface.
