Manufacturer Part #
1445957-5

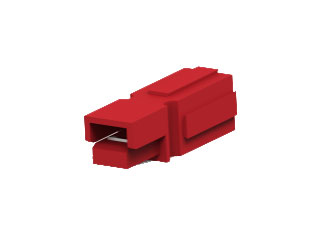

Connector Housing RCP 1 Pole Modular Connector ST Bulk Red
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Bag | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1445957-5 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1445957-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1445957-5-te-connectivity-8097909
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1445957-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/1445957-5-te-connectivity-8097909
TE Connectivity 1445957-5 - Technical Attributes
Attributes Table
| Contact Termination: | Crimp Terminal |
| No of Positions: | 1 |
| Color: | Red |
| Material: | Polycarbonate |
Features & Applications
The 1445957-5 is a Connector Housing RCP 1 Pole Modular Connector ST Bulk Green. AMP Power Series Connectors provide a durable, quick connect/disconnect means to transmit "power" levels of current and voltage (15-275 A, 600 V AC/DC). This product family is primarily comprised of single-pole and 2-pole (battery) connector housings, crimp snap-in contacts, and accessories.
Housings are offered in various colors. Two-pole housings have different polarization configurations; with the exception of black housings, each color identifies a different keying configuration. In general, only like color housings will mate. Contacts are either cold-headed or stamped and formed, depending upon the connector Series.
Product Features:
- Series = 15, 30, 45
- Product Type = Connector
- Connector Type = Housing
- UL File Number = E28476
- Sealed = No
- Wire/Cable Type = Discrete Wire
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Size (AWG) = 10 – 20
- Wire/Cable Size (mm²) = 0.503 – 6.114
- Number of Positions = 1
- Mating Retention = With
- Length (X-Axis) (mm [in]) = 24.60 [0.968]
- Width (Z-Axis) (mm [in]) = 7.40 [0.291]
- Profile Height (Y-Axis) (mm [in]) = 7.40 [0.291]
- Wire Type = Stranded
Applications:
- AC/DC Power Supplies and Charging Systems, Rechargeable Batteries, Material Handling Equipment (e.g. forklift trucks), Electric Vehicles (e.g., golf carts, sweepers, wheelchairs), Office Furniture/Panels, Amateur Emergency Radios, and Industrial Equipment
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
4,000+
$0.30
Product Variant Information section
Available Packaging
Package Qty:
4000 per Bag
