Manufacturer Part #

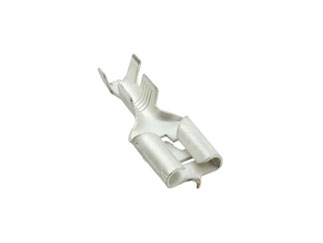

280756-4
Multiple Circuit Housings with Tabs & Receptacles
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Mounting Method:Wire Mount | ||||||||||
| Date Code: | 2208 | ||||||||||
TE Connectivity 280756-4 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:The listed part numbers are being improved packaging, Keep the packaging type and packaging quantity same, just Change paper reel to local reel for Faston. Please consult with your local customer sales representative for further details.Reason for Changes:Packaging improvement
General Description of ChangesDear Valued Customer, This is a correction to the PCN's listed below. As mentioned in the previous PCNs, mixed shipments may be possible until September 30th, 2025. The "Last Date for Mixed Shipment" box in this PCN now matches this date. PCN-24-198118, PCN-24-198122, PCN-24-198106, PCN-24-198129, PCN-24-198131, PCN-24-198087, PCN-24-198098, PCN-24-198100, PCN-24-198185Reason for Changes:Corrective PCN to clarify last date for mixed shipments.
General Description of ChangesDear Valued Customer, This is a correction to the PCN's listed below. As mentioned in the previous PCNs, mixed shipments may be possible until September 30th, 2025. The "Last Date for Mixed Shipment" box in this PCN now matches this date. PCN-24-198118, PCN-24-198122, PCN-24-198106, PCN-24-198129, PCN-24-198131, PCN-24-198087, PCN-24-198098, PCN-24-198100, PCN-24-198185Reason for Changes:Corrective PCN to clarify last date for mixed shipments.
General Description of Changes: Dear Valued Customer, the listed part numbers are currently sourced from TE Connectivity (TE) manufacturing site in Collegno (Italy). These part numbers may be dual sourced from TE Collegno manufacturing site and TE Qingdao (China) manufacturing site from a period starting on 01 May 2024 until September 30th, 2025, at the latest. Mixed shipments may be possible. After September 30th, 2025, these part numbers will be single sourced from TE Qingdao (China) manufacturing site. An internal release based on applicable TE specifications will be executed before any parts will be delivered, to ensure product performance is compliant with applicable TE specifications. If there is a change to the above listed schedule, we will update you further.Reason for Changes: Manufacturing location change
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=280756-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/280756-4-te-connectivity-7114002
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=280756-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/280756-4-te-connectivity-7114002
TE Connectivity 280756-4 - Technical Attributes
| Type: | Contact |
| Contact Termination: | Crimp Terminal |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Operating Temp Range: | -40°C to +125°C |
| Voltage Rating: | 250V |
| Mounting Method: | Wire Mount |
Features & Applications
The 280756-4 is a 3.80-5.10 mm 12-10 AWG Straight Wire to Cable Crimp Multiple Circuit Housings with Tabs & Receptacles.
This FASTIN-FASTON Connectors are the multiple-connector version of the basic FASTON Terminal Line. Primarily used as harness connectors, they make possible simultaneous and quick attachment of up to eight separate circuits with a maximum of 20 leads
Product Type Features:
- Product Type = Contact
- Mating Area Interface Dimensions (mm [in]) = 9.53 x 1.22 [.375 x .048]
- Insulation Diameter (mm [in]) = 3.80-5.10 [.150-.201]
- Receptacle Style = Straight
- Wire/Cable Type = Regular Wire
- Finish = Tin
- Material = Phosphor Bronze
- Insertion Force = Normal
- Insulation Support = With
- Crimp Type = F-Crimp
- FASTON = Yes
- Wire Range (mm [AWG]) = 3.00-6.00² [12-10]
- Stock Thickness (mm [in]) = 0.51 [0.020]
- Contact Type = Receptacle
Available Packaging
Package Qty:
2000 per Reel
Mounting Method:
Wire Mount
