Manufacturer Part #
5207908-1
AMPLIMITE Shell Size 1 Thermoplastic Straight180°/90°Exit Backshell Clable Clamp
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Kit Mounting Method:Wire Mount |
||||||||||
| Date Code: | 2423 | ||||||||||
TE Connectivity 5207908-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5207908-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/5207908-1-te-connectivity-5100904
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5207908-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/5207908-1-te-connectivity-5100904
TE Connectivity 5207908-1 - Technical Attributes
| Type: | Accessory |
| Accessory Type: | Strain Relief |
| Color: | Black |
| Contact Material: | Stainless Steel |
| Mounting Method: | Wire Mount |
Features & Applications

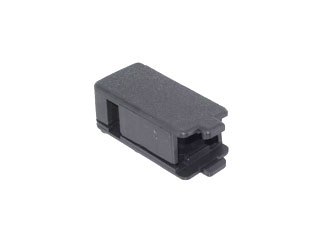

The 5207908-1 is a HD20 Series Thermoplastic 180°/90° Exit Angle Cable Clamp Kit.
Box and Lid Cable Clamps can be used on either plugs or receptacles and will not interfere with commonly used hardware. Their hinged construction allows easy assembly to a harness. A wide range of cable diameters are accommodated through the use of cable support gates, supplied with each cable clamp. Cable clamps are available in kits with appropriate hardware for convenient plug/receptacle mating. See below for kits with Male Screw Retainers.
Features:
- Product Type = Backshell/Cable Clamp
- Cable Clamp Type = Box and Lid
- Shell Size = 1
- Screws and Retainer Clips = With
- Grommets = Without
- Thread Size = 4-40
- Product Series = HD-20 (Solder Cup)
- Retainer Clip Material = Stainless Steel
- Cable Exit Angle = Straight(180°)/90°
- Cable Insulation Diameter (mm [in]) = 4.06 [0.160]
- Cable Clamp Material = Thermoplastic
- Shield Plating = None
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
1 per Kit
Mounting Method:
Wire Mount
