TE Connectivity | 5748678-3

Manufacturer Part #

5748678-3

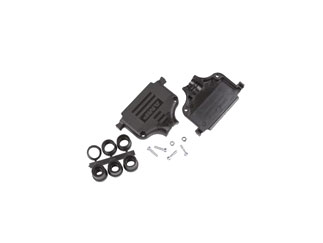

AMPLIMITE 25 Position Shell Size 3 ABS 180° Exit Angle Cable Clamp Kit

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5748678-3 - Technical Attributes
Attributes Table
No of Positions: 25
Features & Applications

The 5748678-3 is a part of AMPLIMITE HDP–20 series 15 Position Thermoplastic 180° Exit Angle Cable Clamp Kit. Used for the application of AMPLIMITE HDP-20 and Economy Crimp Snap Subminiature D Commercial Connectors with all-plastic contact retention.

These commercial connectors are available with or without shielding or shielding enclosure kits

Product Features:

  • Product Type = Backshell/Cable Clamp
  • Cable Clamp Type = Two-Piece RFI/EMI Shield
  • Shell Size = 3
  • Grommets = With
  • Thread Size = 4-40
  • Number of Grommets Per Set = 6
  • Cable Exit Angle = 180°
  • Cable Insulation Diameter (mm [in]) = 6.48 – 11.94 [0.255 – 0.470]
  • Cable Clamp Material = ABS
  • Shielded = No

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
200
Multiple Of:
200
Total
$682.00
USD
Quantity
Unit Price
200
$3.41
400
$3.38
600+
$3.34
Product Variant Information section
Related Products
5748677-5
5748677-5
TE Connectivity

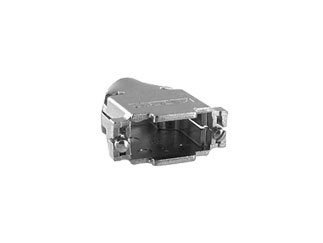

AMPLIMITE 50 Position Shell Size 5 Thermoplastic 180° Exit Angle Cable Clamp Kit
