Manufacturer Part #

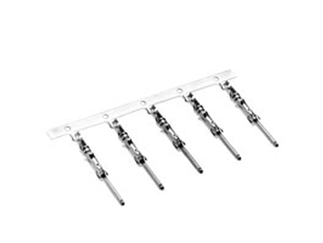

66098-9
MULTIMATE Type III Series 18-16 AWG Discrete Wire Crimp Signal Pin Contact
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:4000 per Reel Mounting Method:Cable Mount |
||||||||||
| Date Code: | 2520 | ||||||||||
TE Connectivity 66098-9 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description of Changes:*** This PCN replaces either PCN-24-2430008, PCN-24-213012 or PCN-24-213010 *** Sustainable precious metal plating standardization across product linesReason for Changes:This product improvement is part of our efforts to reduce CO2 emissions and enhance sustainability across our operations, while ensuring consistent performance standards.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=66098-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/66098-9-te-connectivity-6813653
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=66098-9&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/66098-9-te-connectivity-6813653
TE Connectivity 66098-9 - Technical Attributes
| Type: | Contact |
| Contact Termination: | Male/Pin Crimp |
| No of Positions: | 1 |
| Wire Gauge: | AWG 18-16 |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Operating Temp Range: | -55°C to +150°C |
| Mounting Method: | Cable Mount |
Features & Applications
The 66098-9 is a MULTIMATE Type III Series 18-16 AWG Discrete Wire Crimp Signal Pin Contact. It is available in strip packaging method.
Features:
- Series = Type III+
- Insulation Support = Yes
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Type = Discrete Wire
- Grade = Commercial
- Termination End Plating = Gold Flash
- Pin Diameter (mm [in]) = 1.57 [0.062]
- Wire Range (mm [AWG]) = 0.80-1.40² [18-16]
- Spring Material = Stainless Steel
- Contact Type = Pin
- Contact Base Material = Brass
- Contact Size = 16
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Cable Mount
