Manufacturer Part #
3-338309-2

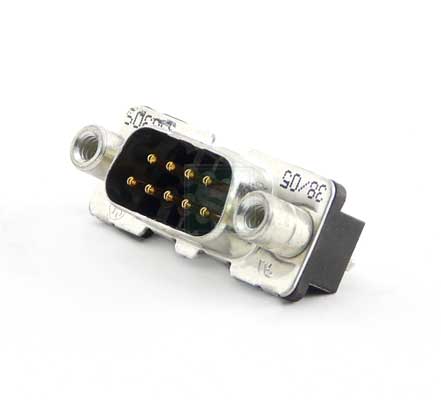

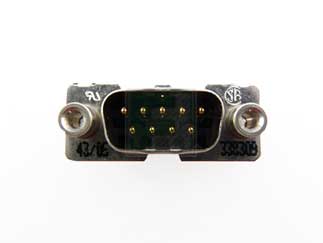

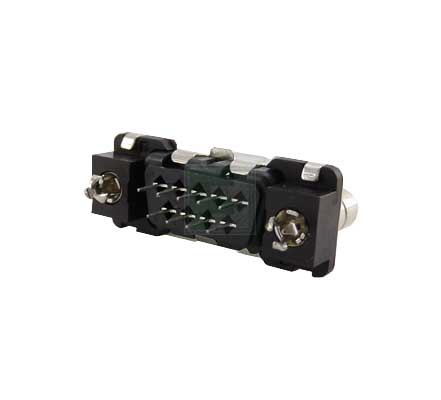

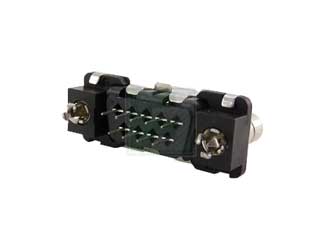

HDP20 Series 9 Position Straight Plug Board Mount D-Sub Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:55 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2441 | ||||||||||
TE Connectivity 3-338309-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:AMPLIMITE Straight Posted Metal ShellDescription of ChangesPlease be aware of an upcoming Plating change to the listed part numbers. Before: Board-lock plating is Bright Tin. After: Board-lock plating is Matte Tin. Reference performance test data: Matte-tin has same performanceReason for Changes:Change made to the Plating of Board-lock.First Ship Date of Changed Items (Changed Parts Only): 08-MAY-2023
General Product Description:HDP20 D-SUB connectorsDescription of ChangesThe listed part numbers will be completely transferred from TE Poland to TE China. An internal release based on TE Connectivity specifications will be executed before any parts will be delivered, which guarantees the performance.Reason for Changes:Manufacturing location changeFirst Ship Date of Changed Items (Changed Parts Only): 01-NOV-2022
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-338309-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/3-338309-2-te-connectivity-4903548
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-338309-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/3-338309-2-te-connectivity-4903548
TE Connectivity 3-338309-2 - Technical Attributes
| Style/Orientation: | Standard Board Mount Plug |
| No of Positions: | 9 |
| No of Rows: | 2 |
| Termination: | PCB |
| Pitch: | 2.74 mm |
| Material: | Full Metal |
| Shell Size: | 1 E |
| Gender: | Male |
| Color: | Black |
| Contact Plating: | Gold |
| Mounting Method: | Through Hole |
Features & Applications
The 3-338309-2 is a HDP20 series 9 position straight plug board mount D-Sub connector.
Features:
- PCB Mounting Orientation = Vertical
- Product Series = HD 20
- Mating Connector Lock = With
- Mating Connector Lock Type = Female Screwlocks, 4-40 UNC
- PCB Mount Retention = With
- Shell Type = Front Metal Shell
- Shell Size = 1 Shell Material = Steel
- Panel Mount Retention = Without
- Termination Post Length (mm [in]) = 3.20 [0.126]
- Solder Tail Contact Plating = Tin over Nickel
- Number of Positions = 9
- PCB Mount Retention Type = Boardlock(s)
- Shell Plating = Tin
- Contact Plating, Mating Area, Material = Gold (30)
- Contact Base Material = Phosphor Bronze
- Performance Level = Level 2
- Connector Style = Plug
- UL Flammability Rating = UL 94V-0
- Housing Material = Polyester GF
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
55 per Tray
Mounting Method:
Through Hole
