TE Connectivity | 5747301-2

Manufacturer Part #

5747301-2

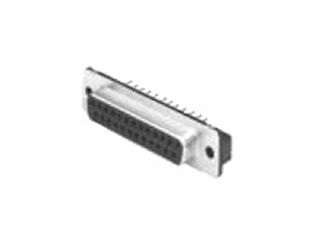

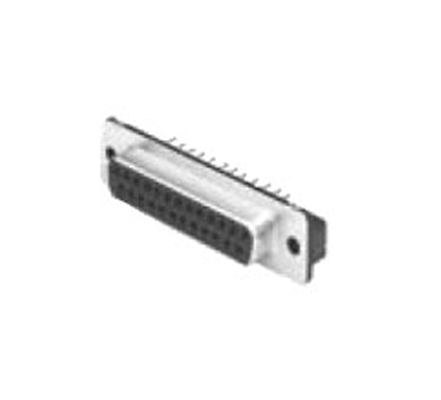

HD20 Series 37 Position Straight Socket Board Mount D-Sub Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5747301-2 - Technical Attributes
Attributes Table
Style/Orientation: Standard PCB Mount Receptacle
No of Positions: 37
Termination: Straight Solder Pins
Material: Front Metal
Mounting Method: Through Hole
Features & Applications

The 5747301-2 is a HD20 series 37 position straight socket board mount D-sub connector.

Features:

  • 37 Positions
  • Connector Style = Receptacle
  • PCB Mounting Orientation = Vertical
  • Product Series = HD 20
  • Without Mating Connector Lock





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
441
Multiple Of:
441
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$4,017.51
USD
Quantity
Unit Price
441+
$9.11
