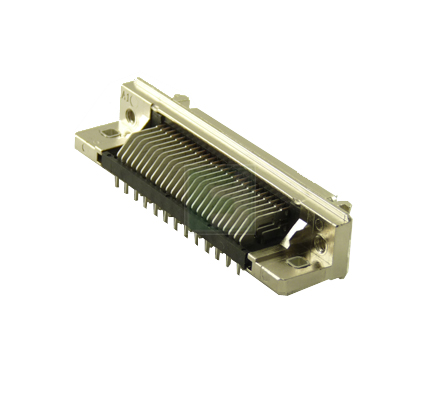

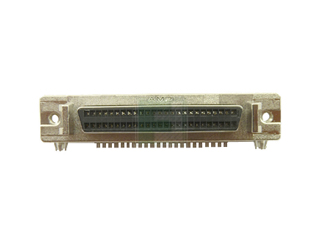

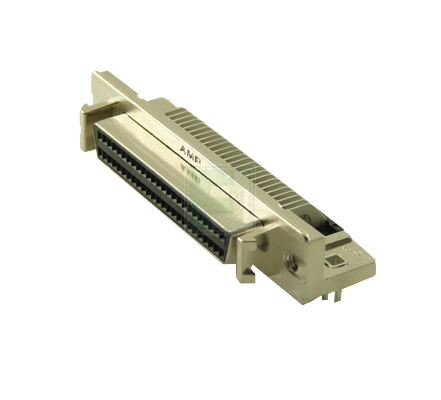

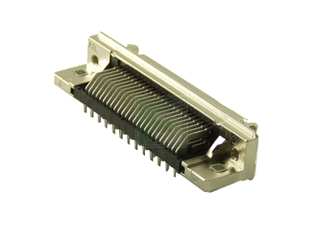

AMPLIMITE Series III 50 Position Right Angle Socket Ribbon Connector

5787082-5 Datasheet 5787082-5 Documentation Package Drawing 3D View
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 10 per Tube Mounting Method: Through Hole
Date Code:	2502

Style/Orientation:	Standard Board Mount Receptacle
No of Positions:	50
No of Rows:	4
Termination:	PCB
Pitch:	1.27 mm
Material:	Full Metal
Shell Size:	5 D
Gender:	Female
Color:	Black
Current Rating:	1A
Voltage Rating:	30V
Contact Plating:	Gold Flash
Insulation Resistance:	1000MΩ
Operating Temperature:	-55°C to +105°C
Mounting Method:	Through Hole

Expand List

Collapse List

The 5787082-5 is a part of AMPLIMITE Series III 50 Position Right Angle Socket .050 Ribbon Connector.

Features:

Product Type = Connector
PCB Mounting Orientation = Right Angle
Termination Method to PC Board = Through Hole - Solder
PCB Mount Retention = With
PCB Mount Alignment = Without
Boardlock Plating = Tin over Nickel
Termination Post Length (mm [in]) = 2.54 [0.100]
Number of Positions = 50
PCB Mount Retention Type = Boardlock(s)
Mating Retention = With
Centerline (mm [in]) = 1.27 [0.050]
Post Plating = Tin over Nickel
Contact Plating, Mating Area, Material = Gold (30), Gold Flash over Palladium Nickel
Contact Base Material = Phosphor Bronze
Connector Style = Receptacle
RoHS/ELV Compliance = RoHS compliant, ELV compliant
