Manufacturer Part #
1-350943-0

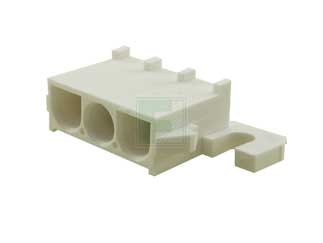

Universal MATE-N-LOK 3 Position Through-Hole Single Row Right Angle Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:280 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | 2252 | ||||||||||
Product Specification Section
TE Connectivity 1-350943-0 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-350943-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/1-350943-0-te-connectivity-3607918
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-350943-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/1-350943-0-te-connectivity-3607918
TE Connectivity 1-350943-0 - Technical Attributes
Attributes Table
| No of Positions: | 3 |
| Pitch: | 6.35 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 19A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 1 |
| Type: | Header |
| Mating Type: | Positive Lock |
| Color: | Natural |
| Mounting Method: | Through Hole |
Features & Applications
The 1-350943-0 is a Universal MATE-N-LOK 3 Position Through-Hole Single Row Right Angle Header
Product Features:
- Product Type = Connector
- Product Line = Universal MATE-N-LOK
- Connector Type = Header
- Color = White
- PCB Mount Alignment = With
- Mount Angle = Right Angle
- Centerline (mm [in]) = 6.35 [0.250]
- Number of Positions = 3
- Mating Retention = With
- Contact Type = Pin
- Contact Layout = In-Line
- Contact Termination Type = Through Hole
- Contact Plating, Mating Area, Material = Pre-Tin
- Contact Base Material = Phosphor Bronze
- Sealable = No
Mating Products:
- 350766-1
- 770018-1
- 350848-3
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
280
$1.06
560
$1.04
840
$1.03
1,120
$1.02
1,400+
$1.00
Product Variant Information section
Available Packaging
Package Qty:
280 per Box
Mounting Method:
Through Hole
