Manufacturer Part #
1586037-2

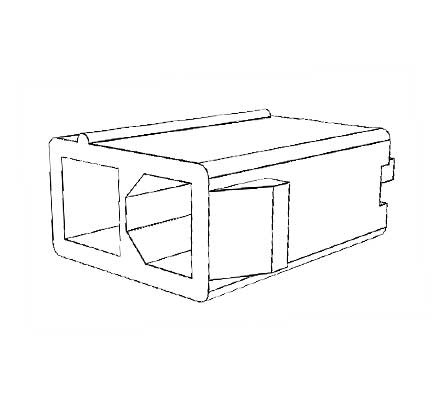

VAL-U-LOK 2 Position Dual Row Through-Hole Straight Pin Header
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10500 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 1904 | ||||||||||
Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes The drawings for the listed part numbers have been modified for clarificationThese parts are plated with bright tin since production development stage, never changed, but updated the drawing to matte tin. So we need to modify to bright tin now. Before: matte tin After: bright tin Reason for Changes: The drawings for the listed part numbers have been modified for clarification; These parts are plated with bright tin since production development stage, never changed, but updated the drawing to matte tin.
Product Lifecycle:
-
ROHS Compliant -
Lead Free
Technical Attributes
| No of Positions: | 2 |
| Pitch: | 4.2 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Type: | Pin Headers |
| Mounting Method: | Through Hole |
Features and Applications
TE Connectivity (TE) has introduced an extension to its VAL-U-LOK connector product line, adding new parts which offer a higher 13A maximum current capability on a 4.2mm centerline spacing. Earlier VAL-U-LOK connectors have a 9A rating.
APPLICATIONS
• Household appliances
• Industrial machinery
• Automotive systems
• Medical devices
• Vending machines
• Gaming equipment
• HVAC equipment
• Indoor and outdoor lighting
• Security systems
• Storage and networking systems
FEATURES
• Vertical and right-angle pin headers available
• Contacts available in strip form or loose pieces
• UL recognized
• CSA certified
Available Packaging
Package Qty:
10500 per Tray
Mounting Method:
Through Hole
