Manufacturer Part #
5-146130-3

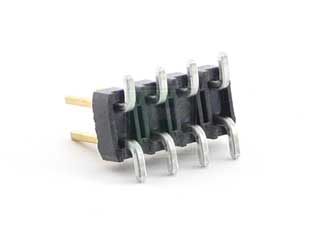

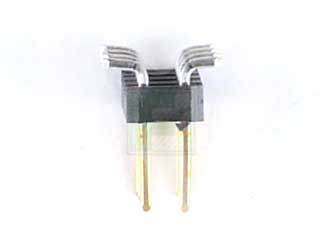

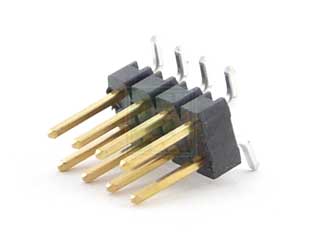

AMPMODU 8 Position Surface Mount Dual Row Straight 2.54 mm Breakaway Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:53 per Tube Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2508 | ||||||||||
TE Connectivity 5-146130-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesPlating optimization for MOD II Breakaway Header. Before: (1) Current localized Gold Plating: 0.76 m(30 in) Au plating on contact area. (2) Current localized Gold Plating: 0.38 m(15 in) Au plating on contact area. After: (1) New localized Gold Plating: 0.66 m(26 in) PdNi+ 0.1 m(4 in) Au flash on contact area. (2) New localized Gold Plating : 0.28 m(11 in) PdNi+ 0.1 m(4 in) Au flash on contact area. Note: The Pd-Ni + Au flash plating has been validated for MOD II BKW header connector and test report is attached for reference.Reason for Changes:Product Improvement - Optimization of Plating for MOD II BKW Header (Au plating to PdNi+Au ash plating)
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-146130-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-146130-3-te-connectivity-8475071
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-146130-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-146130-3-te-connectivity-8475071
TE Connectivity 5-146130-3 - Technical Attributes
| No of Positions: | 8 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Type: | Breakaway |
| Mounting Method: | Surface Mount |
Features & Applications
The 5-146130-3 is a AMPMODU 8 Position Surface Mount Dual Row Straight .100 Inch Breakaway Header .
Product Specification:
- Connector
- Header
- Plug Style
- AMPMODU Product Line
- Pin Contact type
- Centreline is 2.54 mm [0.100 in]
- Number of Positions are 8
- Number of Rows are 2
- Applies to PCB
View the 5-146130 series of Header
Available Packaging
Package Qty:
53 per Tube
Mounting Method:
Surface Mount
