Manufacturer Part #
5-104652-2

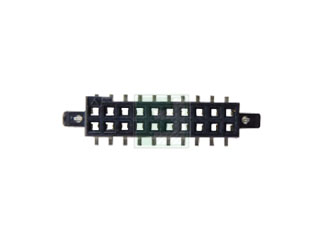

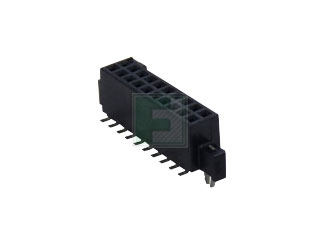

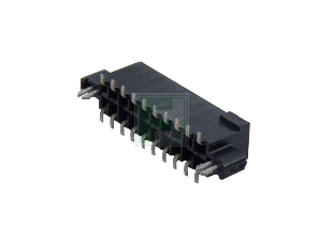

AMPMODU 20 Position Dual Row 1.27 mm Pitch Board to Board Vertical Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3751 per Tube | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 5-104652-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104652-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/5-104652-2-te-connectivity-5645759
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104652-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/5-104652-2-te-connectivity-5645759
Features & Applications
The 5-104652-2 is a AMPMODU 20 position SMT dual row straight strip socket. It has a storage temperature ranging from -65°C to +105°C
Features:
- Product Type Features:
- Connector Type = Connector Assembly
- Mount Angle = Vertical
- Hold-Down Post Material = Copper Alloy
- Mechanical Attachment:
- Hold-Down Post Plating = Tin (150) over Nickel (50)
- Electrical Characteristics:
- Insulation Resistance (M?) = 5,000
- Voltage (VAC) = 30
- Dielectric Withstanding Voltage (V) = 300
- Contact - Rated Current (A) = 1 – 4
- Termination Features:
- Solder Tail Contact Plating = Tin (150) over Nickel (50)
- Body Features:
- Number of Positions = 20
- PCB Mount Retention Type = Hold Down Post(s)
- Contact Features:
- Contact Base Material = Copper Alloy
- Contact Plating, Mating Area, Material = Gold (30)
- Underplate Material = Nickel
- Housing Features:
- Connector Style = Receptacle
- Mating Alignment Type = Polarizing Tab
- Housing Material = Thermoplastic - GF
- UL Flammability Rating = UL 94V-0
- Housing Color = Black
View the available family of straight strip socket
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
46 Weeks
Quantity
Unit Price
3,751+
$2.50
Product Variant Information section
Available Packaging
Package Qty:
3751 per Tube
