TE Connectivity | 5-794632-0

Manufacturer Part #

5-794632-0

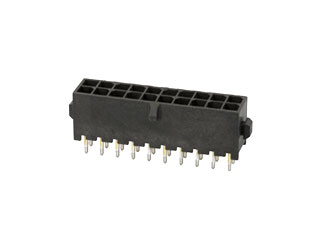

Micro Mate-N-Lok 20 Position Dual Row 3 mm Pitch Vertical Pin Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

The 5-794632-0 is part of Micro MATE-N-LOK Connector System with Both single row and double row configurations. Crimp, snap-in pin and receptacle contacts are used to terminate AWG wire. Plug and receptacle housings allow wire-to-wire and wire-to-panel configurations.

Product Features:

  • PCB Mount Retention Type = Compliant Posts
  • Through Hole Contact Termination Type
  • Mount Angle = Vertical
  • Mount = Printed Circuit Board
  • PCB Mount Alignment = Without
  • Product Line = Micro MATE-N-LOK
  • Voltage (VAC) = 250
  • Current Rating (A) = 5
  • Solder Tail Contact Plating = Matte Tin
  • Contact Plating, Mating Area, Material = Gold (30)
  • Contact Base Material = Brass
  • Lead Free Solder Processes = Reflow solder capable to 245°C, Reflow solder capable to 260°C

Product Applications:

  • Household appliances
  • Lighting
  • Factory automation
  • Data storage
  • Gaming
  • Vending


Mating Product:

  • 2-794617-0
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
1144
Multiple Of:
1144
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$4,530.24
USD
Quantity
Unit Price
1,144+
$3.96
