TE Connectivity | 1-640250-3

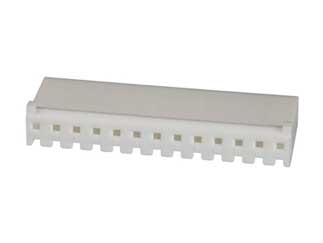

The 1-640250-3 13 Position Crimp Locking Ramp Free Hanging Receptacle Connector wire-to-printed circuit board system with contacts in a staggered, single row on .050 [1.27] centerline. The design features wire feedthrough capability for daisychain applications

Insulation displacement contacts are used to terminate a wide range of conductor sizes.Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board mount applications include right-angle (horizontal) and vertical mount products.These are available in through-hole and surface mount configurations.

Product Features:

• Connector Type = Housing
• Product Line = SL-156
• Termination Method to Wire/Cable = Crimp
• Mating Connector Lock = With
• Four Points of Contact = Without
• Shrouded = No
• Mounting Ears = Without
• Wire Insulation Diameter (mm [in]) = 2.79 [0.110]
• Mating Connector Lock Type = Locking Ramp
• Panel Mount Retention = Without
• Number of Positions = 13
• Centerline (mm [in]) = 3.96 [0.156]
• Cable Exit Angle = 180
• Contact Type = Socket
• Connector Style = Receptacle
• Housing Color = White
• Mating Alignment = Without
• UL Flammability Rating = UL 94V-0
• Housing Material = Nylon

Applications:

• Appliance
• Commercial and Home Equipment
• Industries Security products
