Manufacturer Part #
172330-1

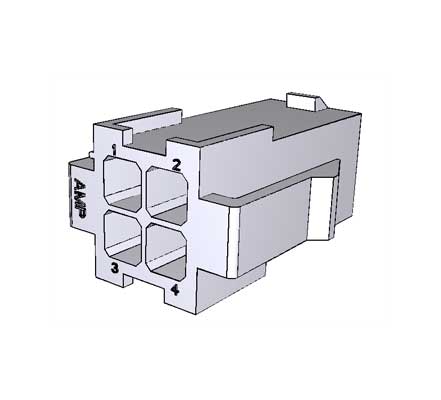

Mini-Universal MATE-N-LOK Series 4 Position Positive Lock Housing Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:6000 per Box | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 172330-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172330-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/172330-1-te-connectivity-2939841
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=172330-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/172330-1-te-connectivity-2939841
TE Connectivity 172330-1 - Technical Attributes
| No of Positions: | 4 |
| Contact Termination: | Female/Socket Crimp |
| Style/Orientation: | Free Hanging Receptacle |
| Material: | Nylon |
| Mating Type: | Positive Lock |
Features & Applications
Tyco Electronics Soft Shell Pin & Socket Connectors (Mate-N-Lok Series) is one of the most popular plastic connectors in use today.
Soft Shell Pin & Socket Connectors provide a highly economic and reliable way of grouping multiple-lead connections in today’s marketplace. The Soft Shell series is both compact and highly durable where operating temperatures might vary from –40C to -105C
Available in panel or free-hanging configurations, the Soft Shell Pin & Socket family offers interconect solutions for wire-to-wire and wire-to-board pin and receptacle connector applications.
Mini Universal Mate-N-Lok is a wire-to-wire and wire-to-board connector system that is fully polarized to provide proper plug-to-cap mating that incorporates a positive locking mechanism. Available in both free hanging and panel mount with contacts that accept wire size range 30-16 AWG.172330-1 is a softshell free hanging or panel mount cap housing with 4 (female) contact positions single row housed in a plastick body
The 172330-1 comes without contacts. See Accessories for Contact options.
Mating options can also be found in the Related Products Tab
Available Packaging
Package Qty:
6000 per Box
