Manufacturer Part #
776539-1

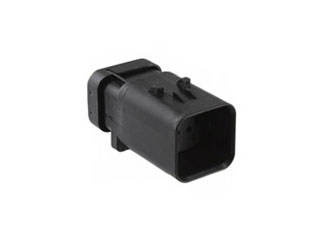

DEUTSCH AMPSEAL 16 Wire to Wire 12 Position 2 Row Housing Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bag Mounting Method:Wire Mount | ||||||||||
| Date Code: | 2426 | ||||||||||
TE Connectivity 776539-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is introducing an additional manufacturing location in Suzhou, China for the part number(s) listed below. These PNs are TE proprietary designs, therefore considered catalog/general market product. PPAP and/or sample requests must be submitted within 14 days of PCN submission via ict-ppap-request@te.com or ePPAP system. Submission will not occur without request. If PPAP requested, disposition response is required within 14 days of submit date or it will be considered approved. Product drawing(s) are not affected.Reason for Changes:Dear Customer, we hereby inform you of this change. The new assembly line is necessary to expand the capacity to meet the current product demand. IMPORTANT: No fit, form, or function change. Parts of the new assembly line are identical to current production. Shipments from current and new tooling configurations may be mixed.
Description of Changes: Manufacturing location changeThe TE approved supplier for the AMPSEAL 16 wire (mat) seals currently molds those seals in the United States. This same supplier also molds the peripheral seals as well but at their China manufacturing facility where the mold was built. The supplier is planning to move the wire seal molds to their China manufacturing facility. The supplier built the wire seal molds in the US with ultimate plans to move the tooling to China where their primary manufacturing facility is located. By having the wire seal tools and the peripheral seal tools at the same manufacturing facility, stricter process and quality controls will become more efficient.
Description of Changes:Manufacturing location changeThe TE approved supplier for the AMPSEAL 16 wire (mat) seals currently molds those seals in the United States. This same supplier also molds the peripheral seals as well but at their China manufacturing facility where the mold was built. The supplier is planning to move the wire seal molds to their China manufacturing facility. The supplier built the wire seal molds in the US with ultimate plans to move the tooling to China where their primary manufacturing facility is located. By having the wire seal tools and the peripheral seal tools at the same manufacturing facility, stricter process and quality controls will become more efficient.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776539-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/776539-1-te-connectivity-7272719
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776539-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/776539-1-te-connectivity-7272719
TE Connectivity 776539-1 - Technical Attributes
| No of Positions: | 12 |
| No of Rows: | 2 |
| Contact Termination: | Crimp Terminal |
| Pitch: | 4.5 MM |
| Style/Orientation: | Free Hanging Plug |
| Termination: | Crimp |
| Operating Temp Range: | -40°C to +125°C |
| Gender: | Male |
| Type: | Housing |
| Color: | Red |
| Mounting Method: | Wire Mount |
Available Packaging
Package Qty:
1 per Bag
Mounting Method:
Wire Mount
