Manufacturer Part #
1981080-1

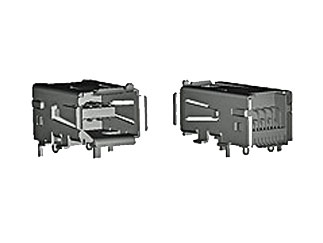

8 Position Single Port Right Angle Surface Mount Industrial Mini Jack Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1981080-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Packaging Process Change
05/14/2025 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1981080-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/1981080-1-te-connectivity-4091237
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1981080-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/1981080-1-te-connectivity-4091237
TE Connectivity 1981080-1 - Technical Attributes
Attributes Table
| Style: | Standard Jack |
| No of Positions: | 8 |
Features & Applications
The 1981080-1 is a Stacked Modular Jack with high performance the Stacked Modular Jack with low profile and narrow width allow more ports to be packed into less space. It has an Operating Temperature of -40° C to +70° C.
Product Features:
- Product Type = Connector
- Jack Type = Industrial Mini
- PCB Mounting Orientation = Right Angle
- PCB Mount Style = Surface Mount
- Termination Method to PC Board = Solder
- Grounding Options = Panel Ground
- Keyed = No
- Profile = Standard
- Jack Configuration = 1 x 1
- Flanged = No
- Shielded = Yes
- Solder Tail Contact Plating = Gold Flash over Nickel
- Port Configuration = Single
- Height (mm [in]) = 5.30 [0.208]
- Shield Plating = Tin over Nickel
- PCB Mount Retention Type = Plastic Post
- Preloaded = Yes
- Contact Base Material = Copper Alloy
- Housing Material = Thermoplastic - GF
- UL Flammability Rating = UL 94V-0
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
28 Weeks
Quantity
Unit Price
1,000+
$2.64
Product Variant Information section
Available Packaging
Package Qty:
1000 per Tray
