Manufacturer Part #
2040537-1

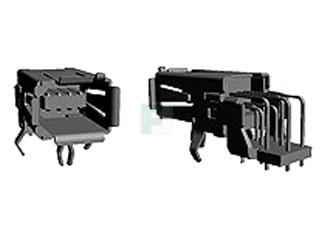

8 Position Single Port Right Angle Through Hole Industrial Mini Jack Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:90 per Tray | ||||||||||
| Date Code: | 2544 | ||||||||||
Product Specification Section
TE Connectivity 2040537-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Packaging Process Change
05/14/2025 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2040537-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/2040537-1-te-connectivity-1007366
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2040537-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/2040537-1-te-connectivity-1007366
TE Connectivity 2040537-1 - Technical Attributes
Attributes Table
| Style: | Standard Jack |
| No of Positions: | 8 |
Features & Applications
The 2040537-1 is a Stacked Modular Jack with high performance the Stacked Modular Jack with low profile and narrow width allow more ports to be packed into less space. It has an Operating Temperature of -40° C to +70° C.
Features:
- Product Type = Connector
- Jack Type = Industrial Mini
- PCB Mounting Orientation = Right Angle
- PCB Mount Style = Through Hole
- Termination Method to PC Board = Solder
- Grounding Options = Panel Ground and PCB Ground
- Keyed = No
- Profile = Standard
- Shield Material = Copper Alloy
- Jack Configuration = 1 x 1
- Flanged = No
- Shielded = Yes
- Solder Tail Contact Plating = Tin over Nickel
- Port Configuration = Single
- Height (mm [in]) = 7.70 [0.303]
- Inverted Jack Face = No
- Shield Plating = Nickel
- Preloaded = Yes
- Contact Base Material = Copper Alloy
- Housing Material = Thermoplastic - GF
- UL Flammability Rating = UL 94V-0
Pricing Section
Global Stock:
708
USA:
708
Factory Lead Time:
23 Weeks
Quantity
Unit Price
1
$4.32
15
$4.22
40
$4.17
100
$4.11
250+
$3.99
Product Variant Information section
Available Packaging
Package Qty:
90 per Tray
