Manufacturer Part #
5520250-2

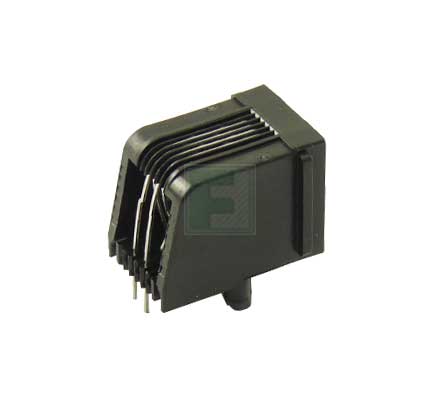

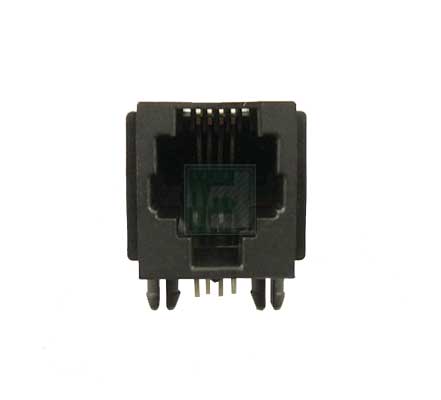

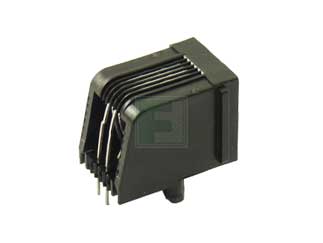

6/4 Position Single Port Right Angle Through Hole RJ14 Modular Jack
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:132 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
TE Connectivity 5520250-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5520250-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5520250-2-te-connectivity-9768466
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5520250-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5520250-2-te-connectivity-9768466
TE Connectivity 5520250-2 - Technical Attributes
Attributes Table
| Style: | Standard Jack |
| No of Positions: | 6 |
| Mounting Method: | Through Hole |
Features & Applications
The 5520250-2 is a PCB Mounted Modular Jack that meets 1000 volt dielectric requirement and is designed for direct mounting on pc boards and for ease of soldering and board cleaning.
Product Features:
- Product Type = Connector
- Jack Type = RJ14
- PCB Mounting Orientation = Right Angle
- PCB Mount Style = Through Hole
- Termination Method to PC Board = Solder
- Grounding Options = Without
- Jack Configuration = 1 x 1
- Panel Mount Retention = With
- Flanged = No
- Shielded = No
- Solder Tail Contact Plating = Tin over Nickel
- Port Configuration = Single
- Height (mm [in]) = 16.13 [0.635]
- Inverted Jack Face = No
- PCB Tail Length (mm [in]) = 3.80 [0.150]
- Contact Plating, Mating Area, Material = Gold (50)
- Contact Base Material = Phosphor Bronze
- Housing Material = PBT - GF
- UL Flammability Rating = UL 94V-0
