Manufacturer Part #
5520250-3

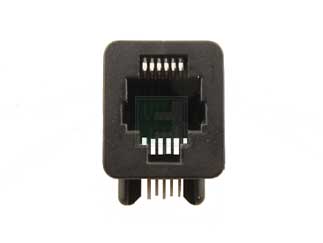

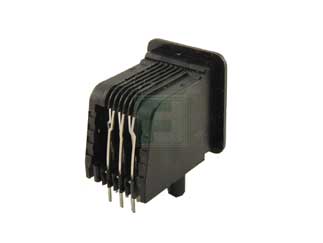

6 Position Single Port Right Angle Through Hole RJ25 Modular Jack
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:132 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2147 | ||||||||||
TE Connectivity 5520250-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description:Modular Jack Assy, Right angleDescription of ChangesNew PPQ and New MOQ for the following part numbers. 5555164-1 = New PPQ is 924 and New MOQ is 2772. 5520250-3 = New PPQ is 792 and New MOQ is 2376. 5520258-3 = New PPQ is 924 and New MOQ is 2772. 5557730-1 = New PPQ is 756 and New MOQ is 2268.Reason for Changes:Packaging Method has been changed. So, PPQ and MOQ will also change as per above.First Ship Date of Changed Items (Changed Parts Only):19-MAY-2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5520250-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5520250-3-te-connectivity-8733305
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5520250-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--modular-ethernet-connectors--modular-jacks/5520250-3-te-connectivity-8733305
TE Connectivity 5520250-3 - Technical Attributes
| Type: | RJ-12 |
| Style: | Standard Jack |
| No of Positions: | 6 |
| No of Rows: | 1 |
| Shielding: | No |
| Color: | Black |
| Contact Material: | Phosphor Bronze |
| Material Finish: | Gold |
| Orientation: | Right Angle |
| Operating Temp Range: | -40°C to +85°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Through Hole |
Features & Applications
The 5520250-3 is a PCB Mounted Modular Jack that meets 1000 volt dielectric requirement and is designed for direct mounting on pc boards and for ease of soldering and board cleaning.
Product Features:
- Product Type = Connector
- Jack Type = RJ25
- PCB Mounting Orientation = Right Angle
- PCB Mount Style = Through Hole
- Termination Method to PC Board = Solder
- Grounding Options = Without
- Profile = Standard
- Latch Style = Standard
- Jack Configuration = 1 x 1
- Panel Mount Retention = With
- Flanged = No
- Shielded = No
- Solder Tail Contact Plating = Tin over Nickel
- Port Configuration = Single
- Height (mm [in]) = 16.13 [0.635]
- Inverted Jack Face = No
- LED = Without
- PCB Tail Length (mm [in]) = 3.80 [0.150]
- Contact Plating, Mating Area, Material = Gold (50)
- Contact Base Material = Phosphor Bronze
- Housing Material = PBT - GF
- UL Flammability Rating = UL 94V-0
Available Packaging
Package Qty:
132 per Tray
Mounting Method:
Through Hole
