TE Connectivity | 5558344-1

Manufacturer Part #

5558344-1

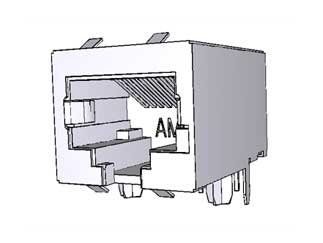

8 Position Single Port Right Angle Through Hole RJ45 Modular Jack

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5558344-1 - Technical Attributes
Attributes Table
Style: Shielded Jack
No of Positions: 8
Mounting Method: Through Hole
Features & Applications

The 5558344-1 is a part of 555834 series 8 position single port right angle hole RJ45 modular jack.

Features:

  • Product Type Features:
    • Product Type = Connector
    • Jack Type = RJ45
    • PCB Mounting Orientation = Side Entry (Right Angle)
    • PCB Mount Style = Through Hole
    • Termination Method to PC Board = Solder
    • Performance Category = Cat 5e
    • Number of Contacts Loaded = 8
    • Grounding Options = Panel Ground and PCB Ground
    • Color = Black
    • Shield Material = Copper Alloy
    • Latch Style = Standard
  • Mechanical Attachment:
    • Jack Configuration = 1 x 1
  • Termination Features:
    • Solder Tail Contact Plating = Tin over Nickel
  • Body Features:
    • Port Configuration = Single
    • Number of Positions = 8
    • Height (mm [in]) = 13.64 [0.537]
    • Shield Plating = Tin
    • Number of PCB Ground Tabs = 2
    • PCB Tail Length (mm [in]) = 3.56 [0.140]
    • PCB Ground Tab Location (mm [in]) = -3.05 [-0.120]
  • Contact Features:
    • Contact Plating, Mating Area, Material = Gold (50)
    • Contact Base Material = Phosphor Bronze
