Sullins | SMH100-LPSE-S10-ST-BK

Manufacturer Part #

SMH100-LPSE-S10-ST-BK

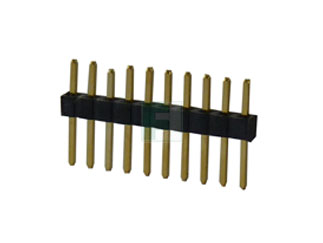

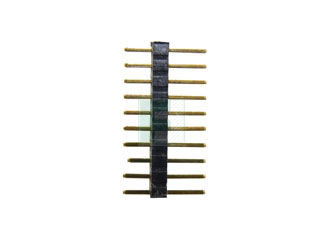

10 Position Total Single Row 1 mm Pitch Straight Male Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SMH100-LPSE-S10-ST-BK - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 1 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Header
Features & Applications

The SMH100-LPSE-S10-ST-BK is a 10 Position Single Row .039 inches Pitch Straight Male Header.

Features:

  • Male Header
  • .000010” Gold Overall
  • 1mm Single Readout
  • 10 total contacts
  • Straight Thru Hole Head 1.80 mm[.071"] Tail 2.50 mm[.098"]
  • Black

Specifications:

  • Insulator Materials: L.C.P, UL 94V-0, BLACK COLOR
  • Contact Material: Phosphor Bronze
  • Current Rating: 1 AMP
  • Insulator Resistance: 1000 MEGA OHMS MIN
  • Contact Resistance: 20 Milli OHMS Max
  • Dielectric withstanding: AC 300 V
  • Operating Temperature: -40° C TO +125° C
  • Processing Temp: 260° C for 10 SECS MAX
  • Mates with Female SFM Series

View the Complete Series of SMH Headers

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
162
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1
Total
$1,210.00
USD
Quantity
Unit Price
20
$1.29
50
$1.27
150
$1.25
300
$1.24
1,000+
$1.21
